Intake Manifold Installation (Lower)

INTAKE MANIFOLD INSTALLATION (LOWER)
1. Install the lower intake manifold gasket.

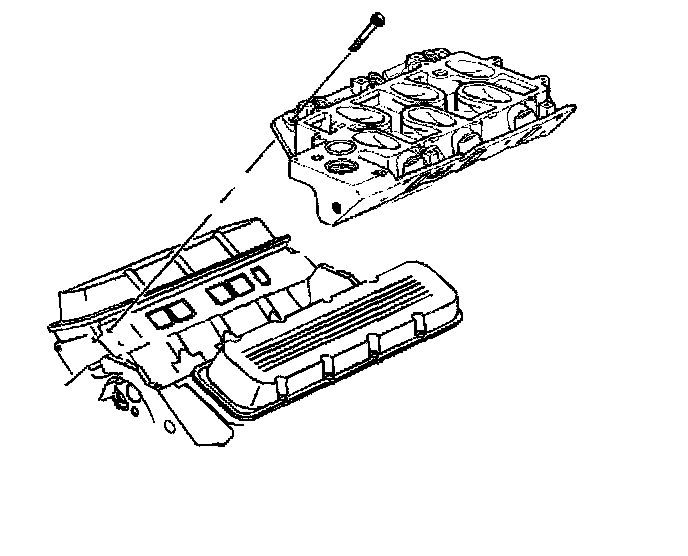

2. Install the lower intake manifold.
3. Apply GM P/N 12345382 threadlocker or equivalent on the threads.

NOTICE: Refer to Fastener Notice in Service Precautions.

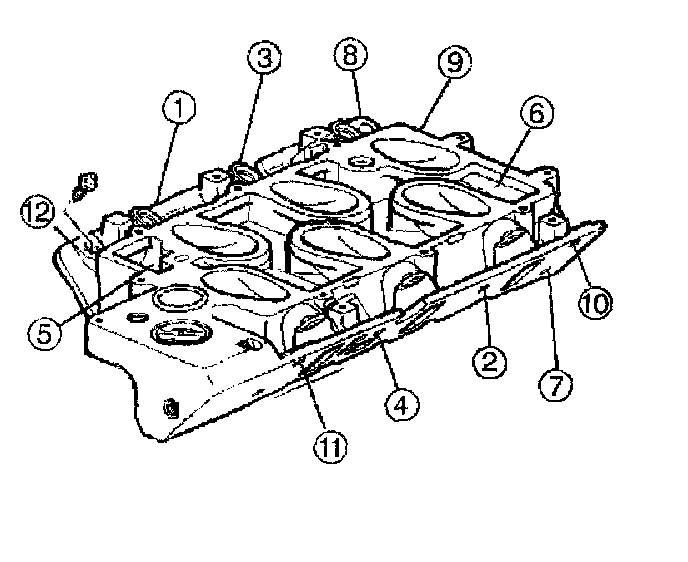

4. Install the lower intake manifold bolts.
^ Tighten the bolts to 15 Nm (111 ft. lbs.).
