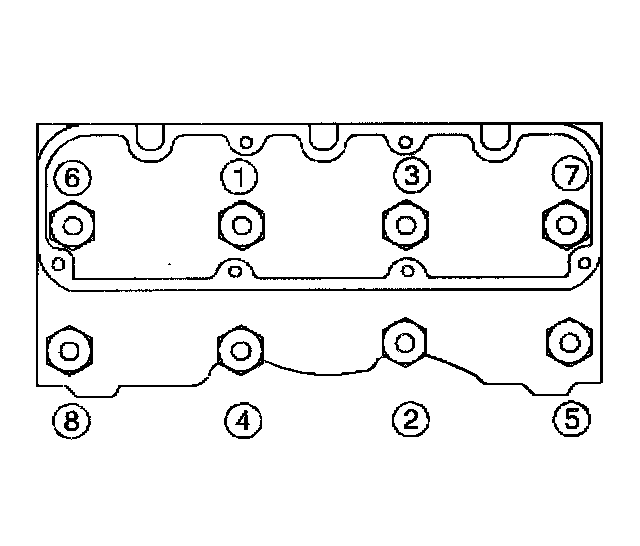

Cylinder Head Bolt Torque and Sequence
Cylinder Head Bolt Torque and Sequence
Tighten the
cylinder head bolts
following the given sequence.
Tighten the
cylinder head bolts
to
50 Nm (37 ft. lbs.)
in sequence.
Using J36660 tighten the
cylinder head bolts
an
additional 120 degrees
.
