Torque Converter Cover: Service and Repair

REMOVAL PROCEDURE





1. Raise and suitably support the vehicle.
2. If servicing the right side cover, remove the starter motor.

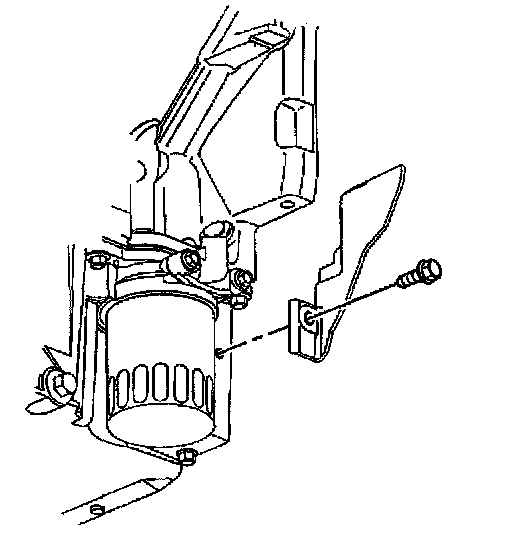

3. Remove the right side converter cover bolt.
4. Remove the right side converter cover.

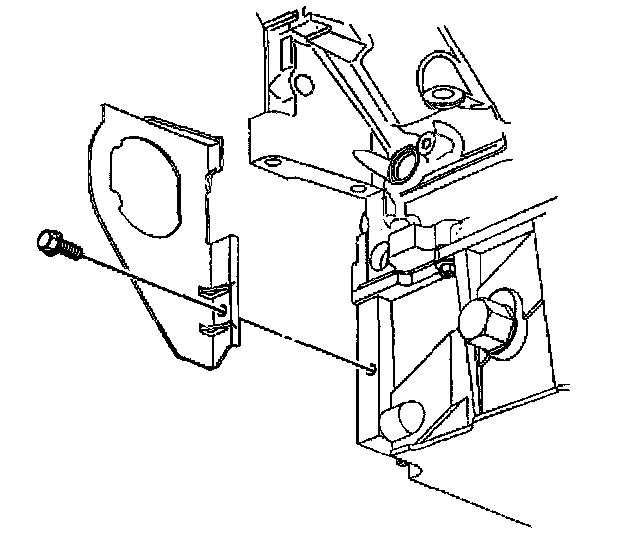

5. Remove the left side converter cover bolt.
6. Remove the left side converter cover.

INSTALLATION PROCEDURE

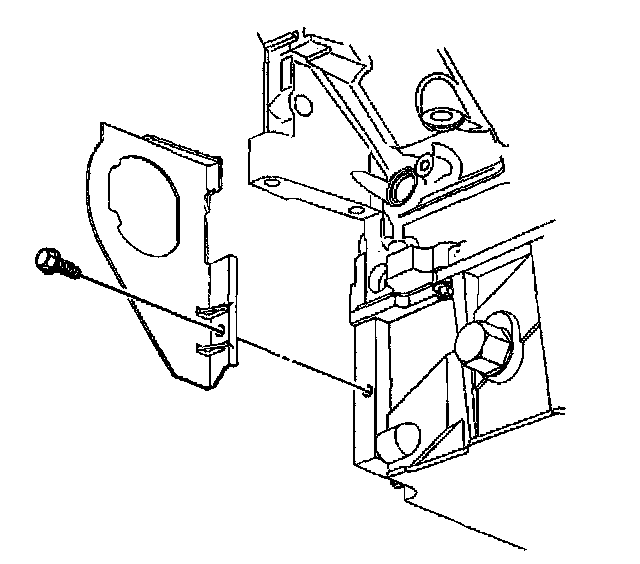

1. Install the left side converter cover.
2. Install the left side converter cover bolt.
^ Tighten the left side converter cover bolt to 12 Nm (106 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

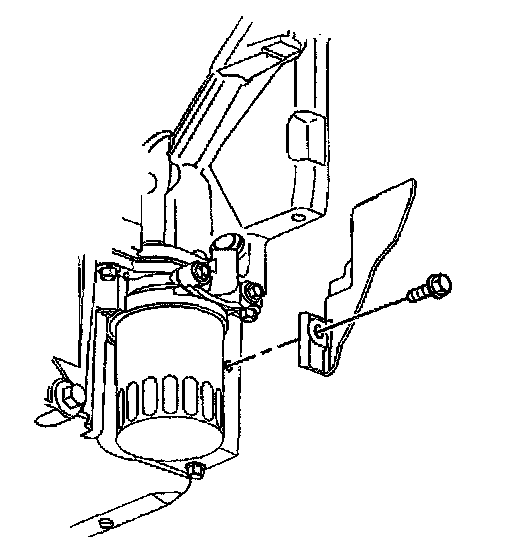

3. Install the right side converter cover.
4. Install the right side converter cover bolt.
^ Tighten the right side converter cover bolt to 12 Nm (106 inch lbs.).

5. Install the starter motor, if removed.
6. Lower the vehicle.
