Extension Housing Disassemble

^ Tools Required
- J 26941 Bearing Race Remover
- J 23907 Slide Hammer





1. Remove the reverse idler shaft bracket bolts.

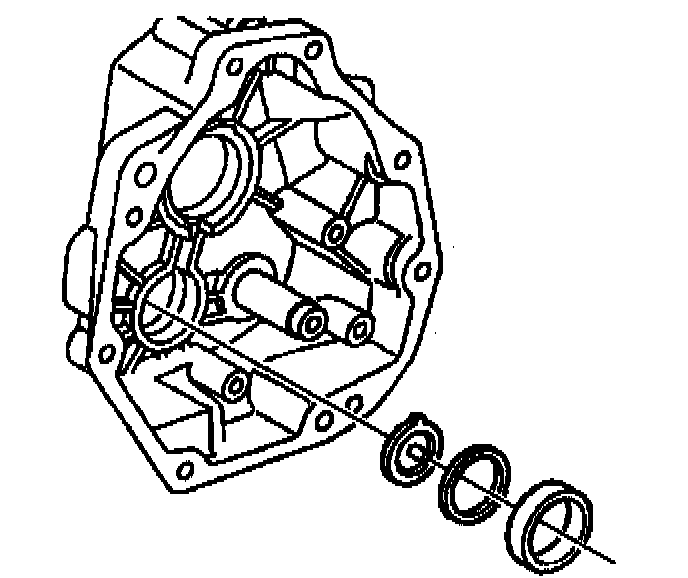

2. Remove the following parts in order:
2.1. The reverse idler gear
2.2. The roller bearing
2.3. The reverse idler shaft





3. Remove the following parts in order:
3.1. The countershaft extension bearing race
3.2. The shim
3.3. The funnel

4. Remove the outer and inner output shaft seals (Pry out the seals with a suitable tool).

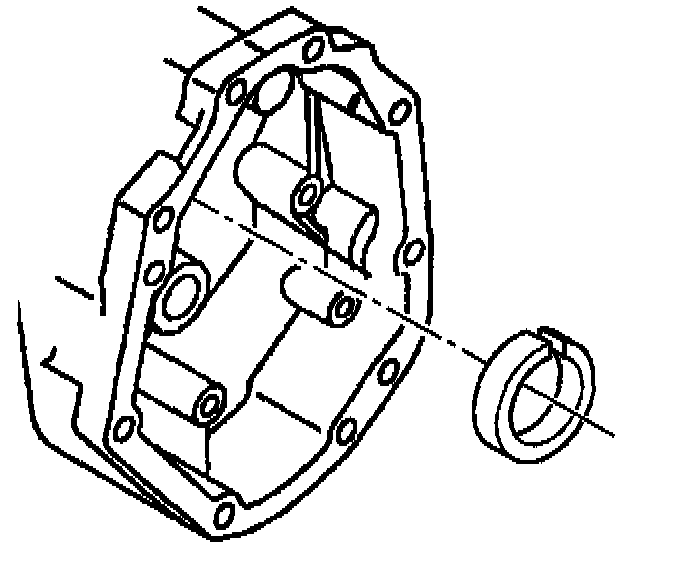

5. Remove the mainshaft bearing race retainer ring.

IMPORTANT: Do not replace the bearing race unless inspection shows bearing race damage.

6. Remove the mainshaft bearing race using J 26941 and J 23907.
