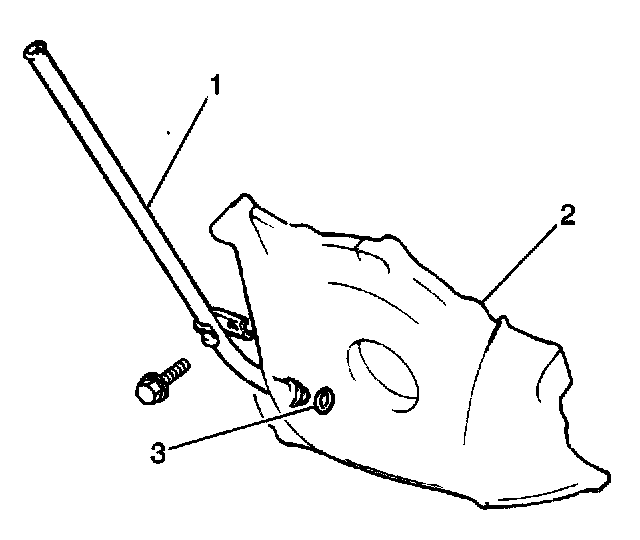

Oil Level Indicator and Tube Installation

1. Install a new guide tube oil seal to the guide tube.
2. Install the guide tube to the oil pump.
3. Secure the guide tube with one bolt.
^ Tighten the guide tube bolt to 11 Nm (97 ft. lbs.).
