Oil Pump Disassemble

1. Remove the five oil pump cover screws.

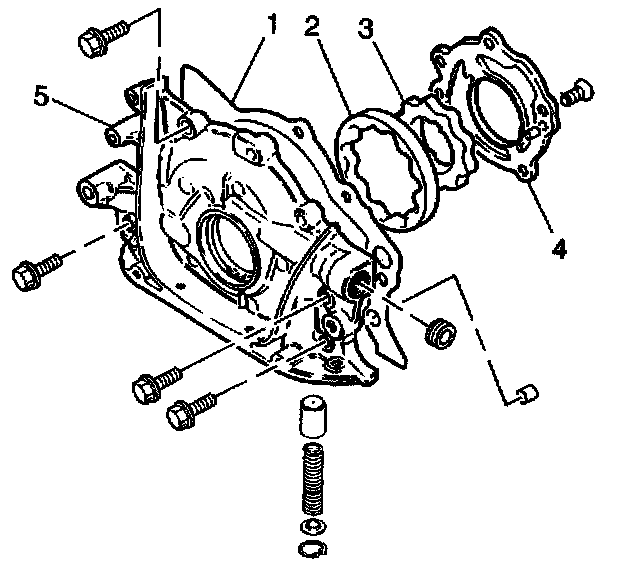

2. Remove the oil pump cover.

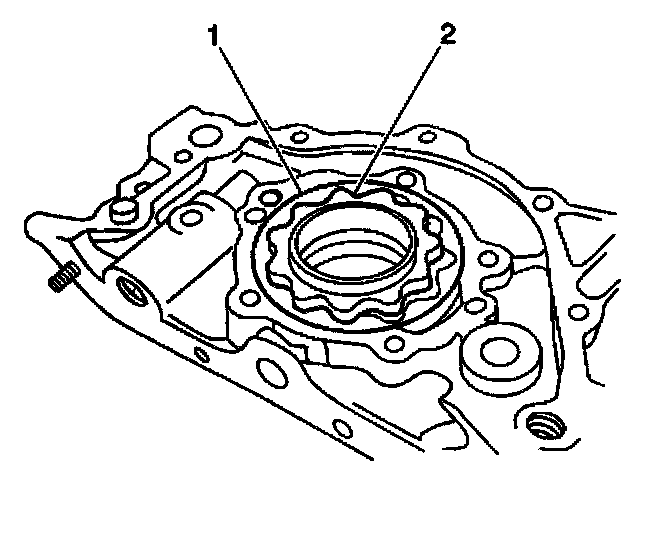

3. Remove the oil pump drive gear and the driven gear from the oil pump.





4. Remove the oil pump pressure relief valve and spring from the oil pump.
