Piston and Connecting Rod Disassemble

^ Tools Required
- J24086-C Piston Pin
- J24086-150 Fork Insert
- J24086-900 Universal Fork





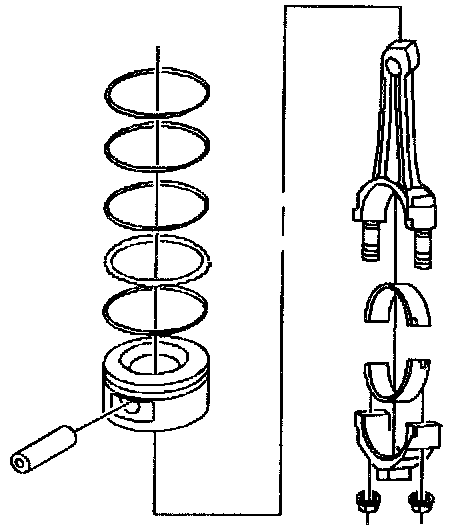

1. Remove the piston rings from the pistons. Use a suitable tool in order to expand the rings.





2. Mark, separate, and organize the rings for assembly.

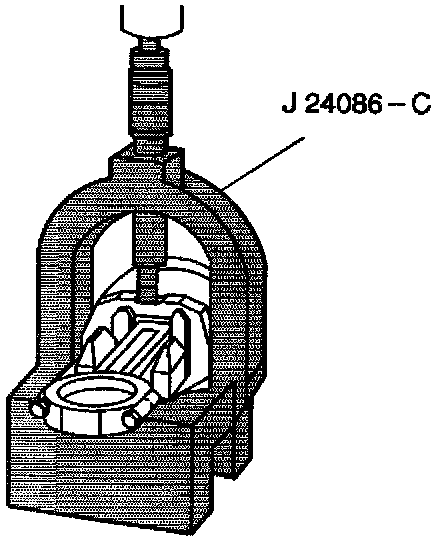

3. Press the piston pin from the connecting rod using the J24086-C. The piston pin has an interference fit into the connecting rod, and is full floating in the piston.





4. Mark, separate, and organize the parts for assembly.
