Accelerator Pedal: Service and Repair

Accelerator Controls Pedal Replacement

Removal Procedure

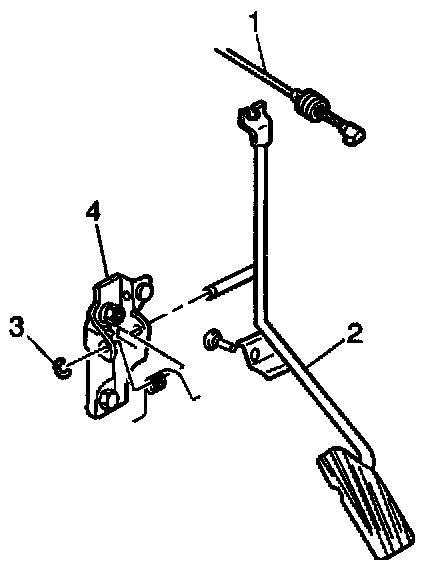

1. Disconnect the accelerator control cable (1) from the accelerator pedal assembly (2).
2. Remove the C-clip (3) from the accelerator pedal assembly pivot.
3. Remove the accelerator pedal assembly (2) and spring from the mounting bracket (4).

Installation Procedure




1. Install the accelerator pedal assembly (2) and spring to the mounting bracket (4).
2. Install the C-clip (3) to the accelerator pedal assembly pivot.
3. Connect the accelerator control cable (1) to accelerator pedal assembly (2).
