Pilot Bearing: Service and Repair

REMOVAL PROCEDURE

^ Tools Required
- J 34839 Pinion Bearing Remover
- J 37764 Pilot Bearing Remover Adapter
- J 23907 Clutch Pilot Bearing Remover





1. Remove the manual transaxle assembly from the vehicle.
2. Remove the clutch pressure plate.
3. Remove the clutch disc.

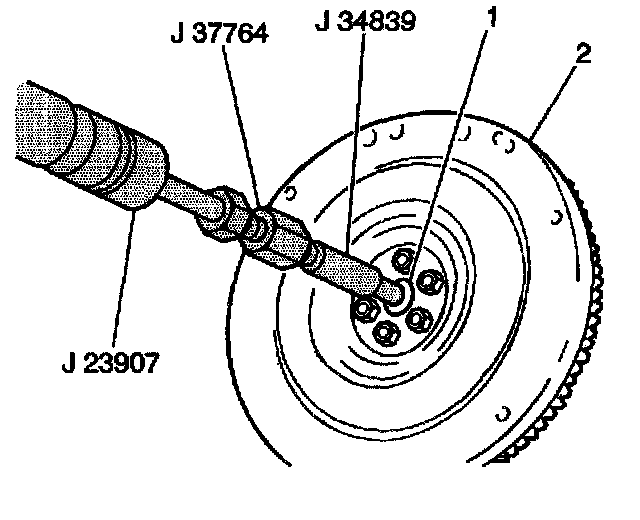

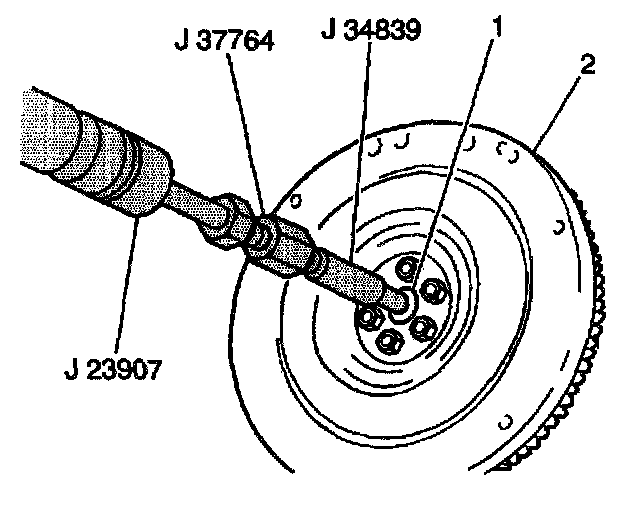

4. Use J 34839, J 37764 and J 23907 in order to remove the clutch pilot bearing (1).
5. Inspect the clutch pilot bearing (1) for the following conditions:
^ Scoring
^ Binding
^ Damage

INSTALLATION PROCEDURE

^ Tools Required
^ J 36190 Drive Handle
^ J 34848 Clutch Pilot Bearing Installer





1. Use J 34848 with J 36190 in order to install the clutch pilot bearing (1) into the crankshaft.
2. Install the clutch disc.
3. Install the pressure plate.
4. Install the manual transaxle assembly into the vehicle.
