Antilock Brakes / Traction Control Systems

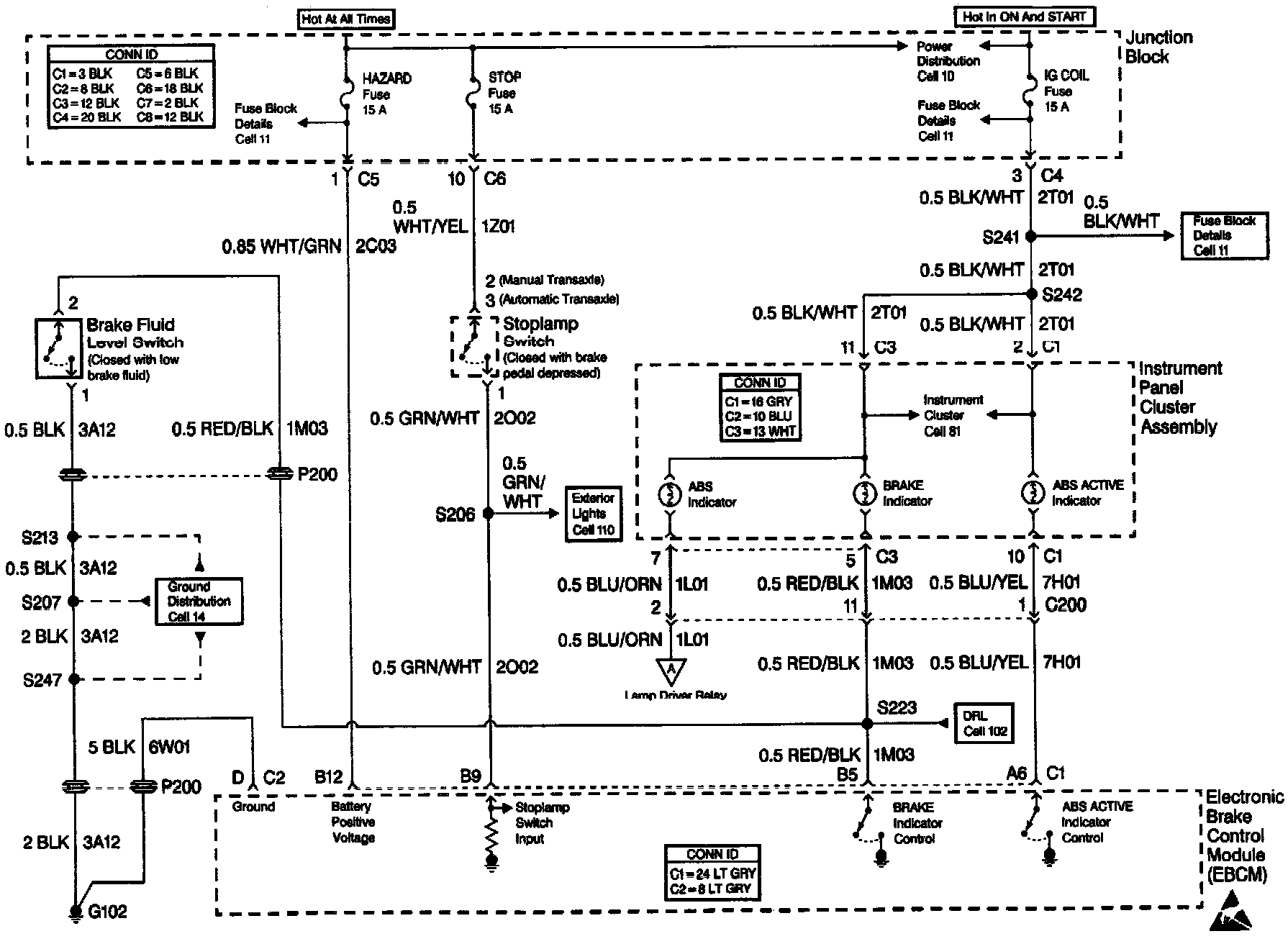

Power, Ground And Indicators:

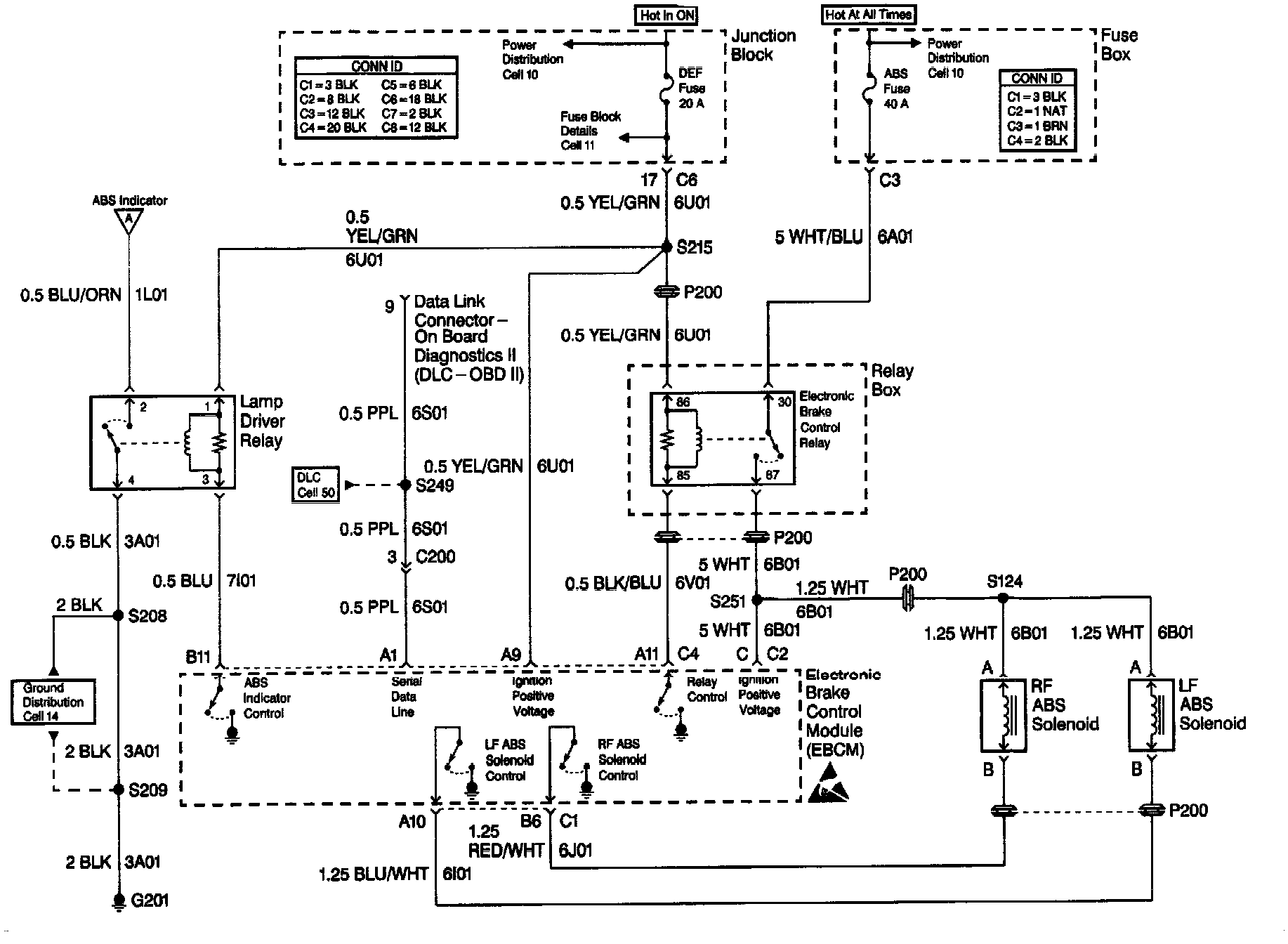

DLC And Solenoids:



Wheel Speed Sensors And Motor Pack:
