Home
>>
Pontiac
>>
1998
>>
Firefly (CANADA) L4-1.3L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Module HVAC
>>
Locations
>>
Connector Locations
>>
A/C Compressor Control Module Connector (with A/C)
A/C Compressor Control Module Connector (with A/C)

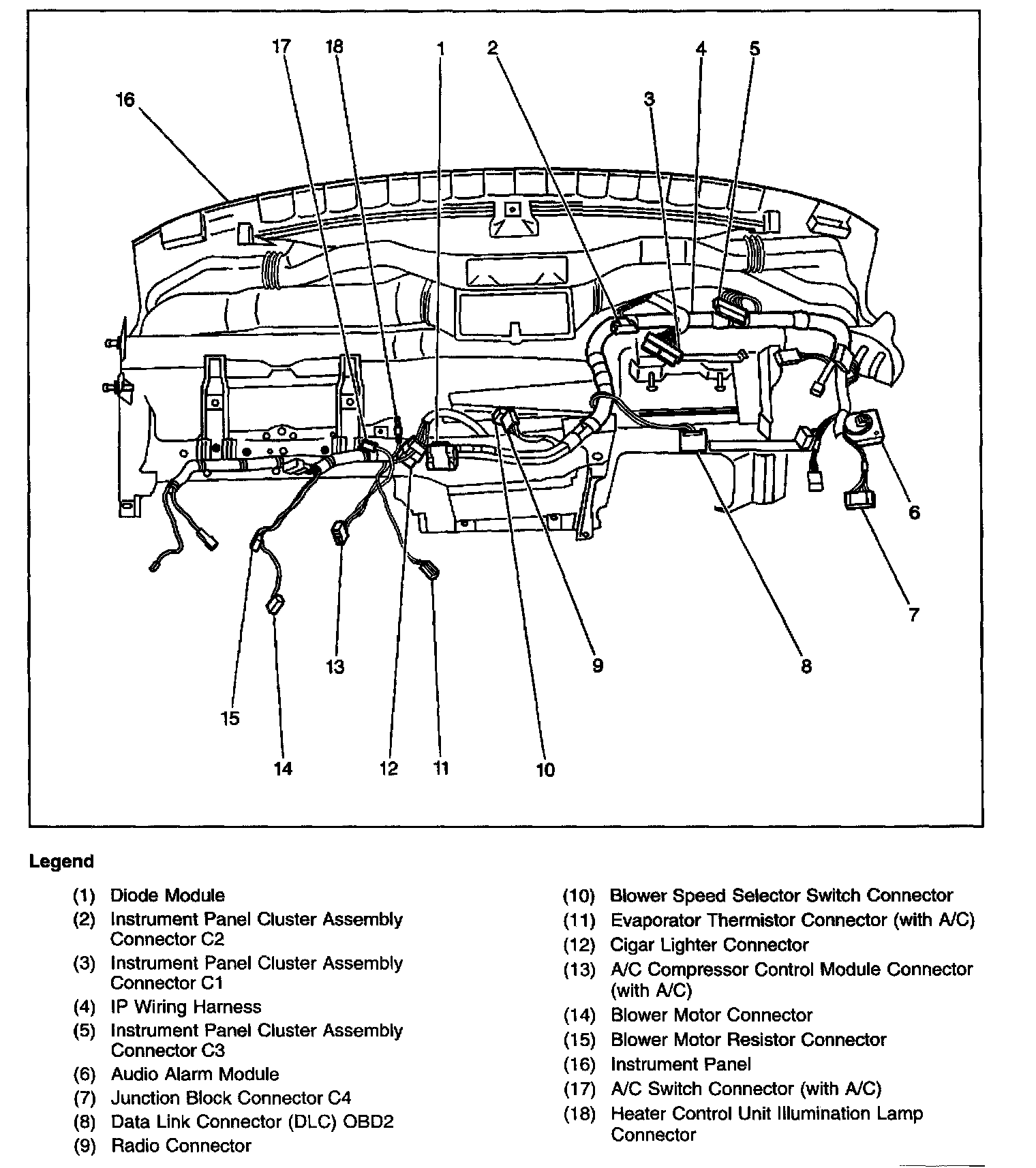

Instrument Panel - Rear View:
