Home >> Pontiac >> 1998 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G201

G201

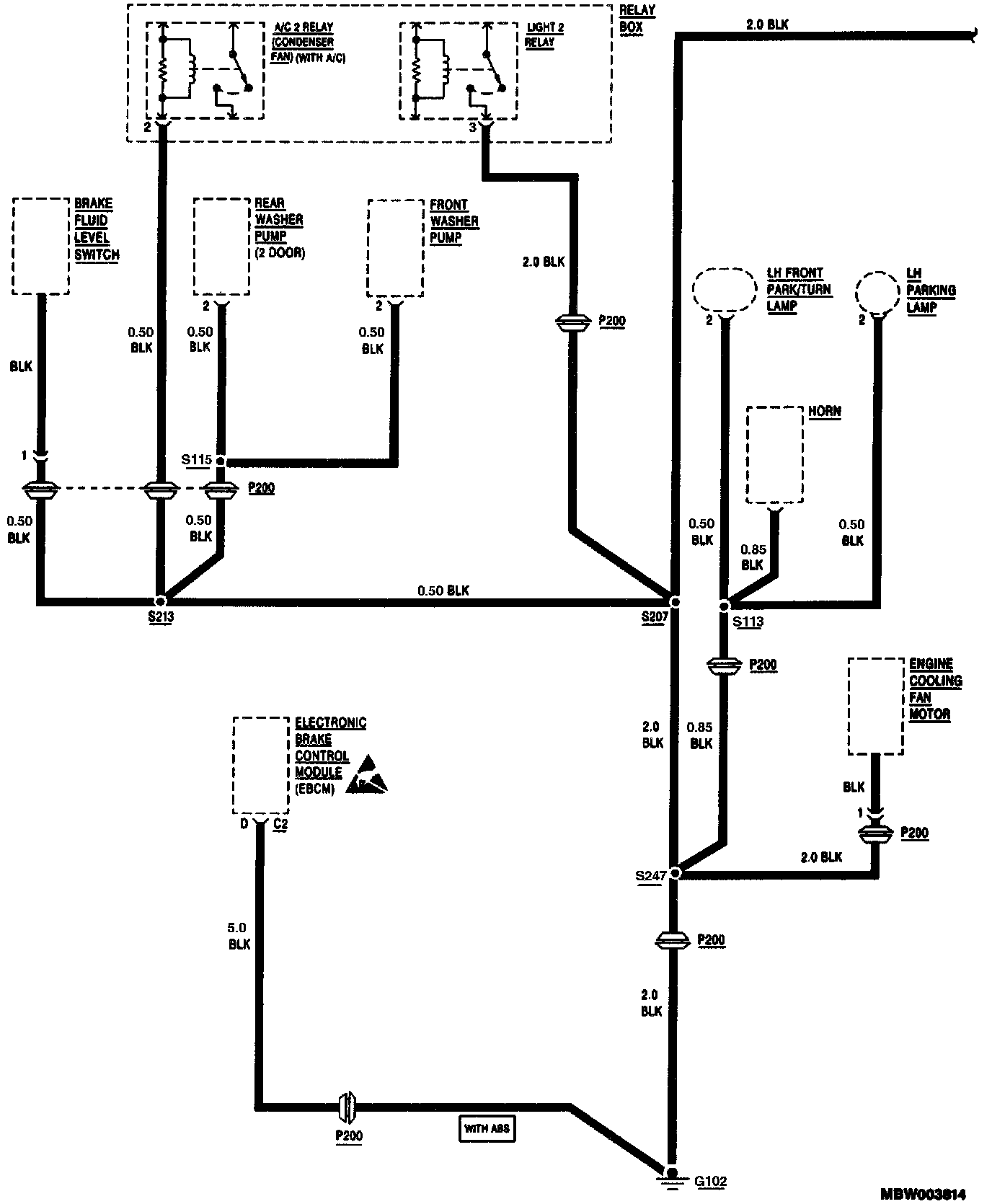

G102, G201, G202 & G203 (Part 1 Of 3):

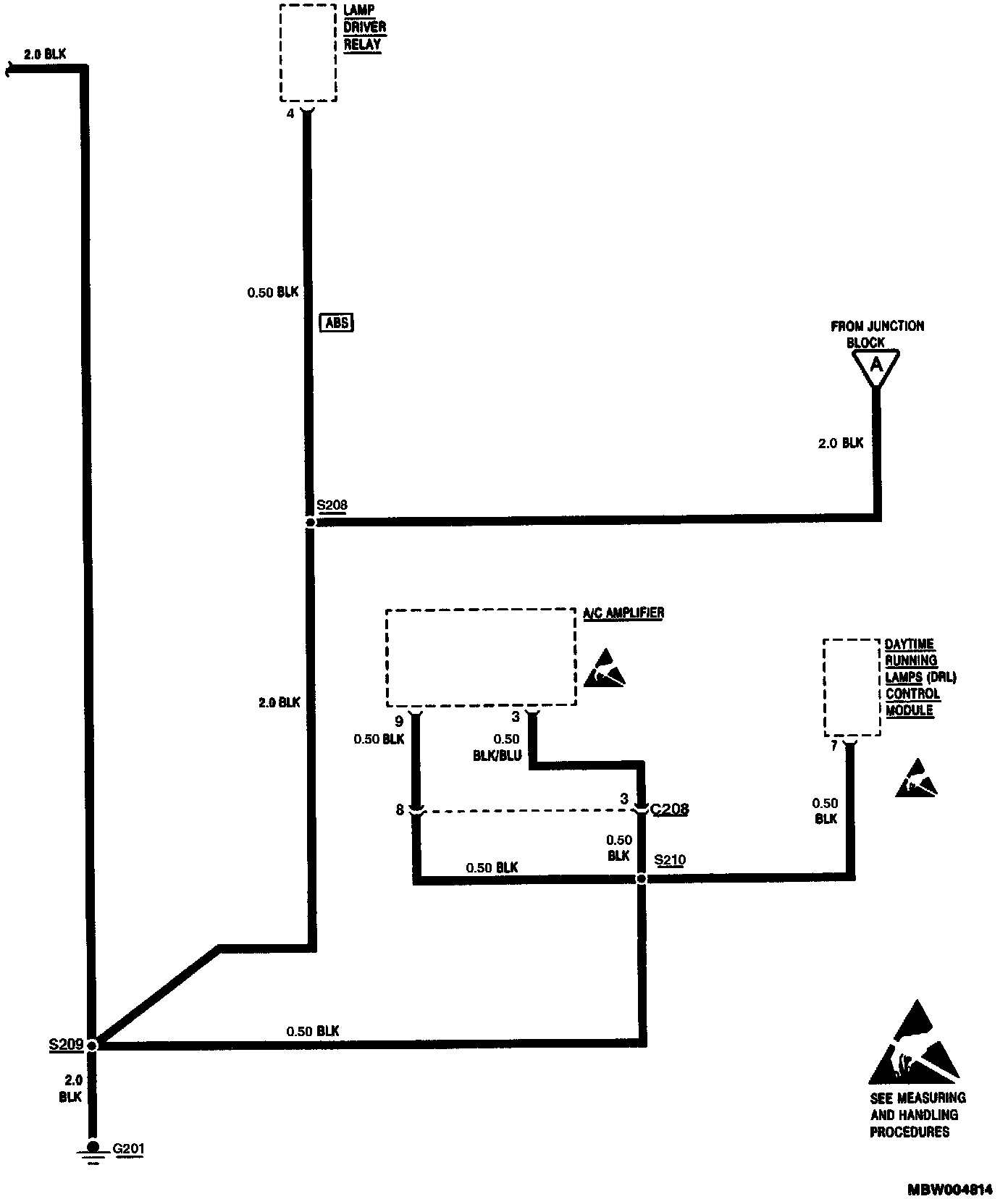

G102, G201, G202 & G203 (Part 2 Of 3):

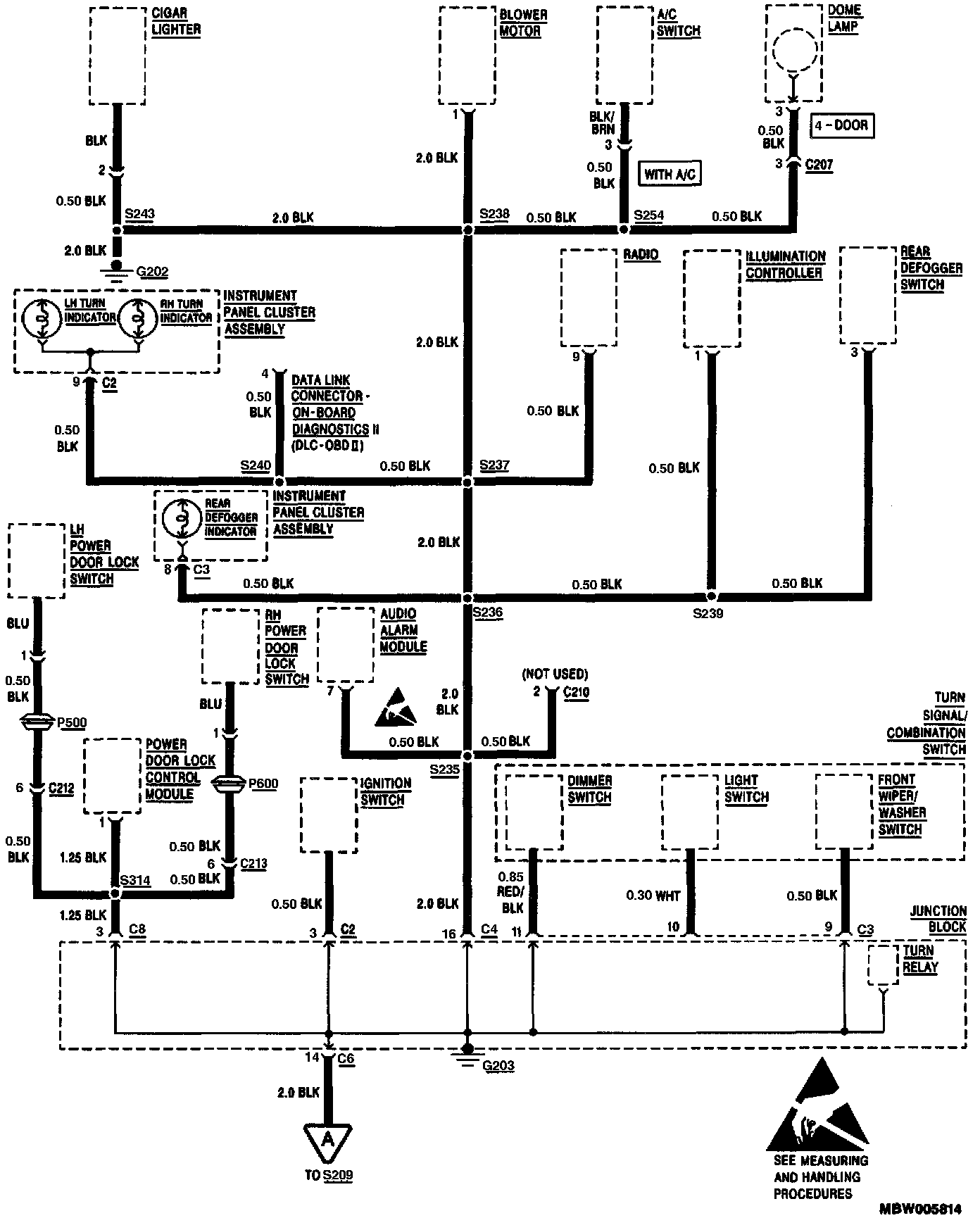

G102, G201, G202 & G203 (Part 3 Of 3):
