Home >> Pontiac >> 1998 >> Grand Prix V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Manual >> C2

C2

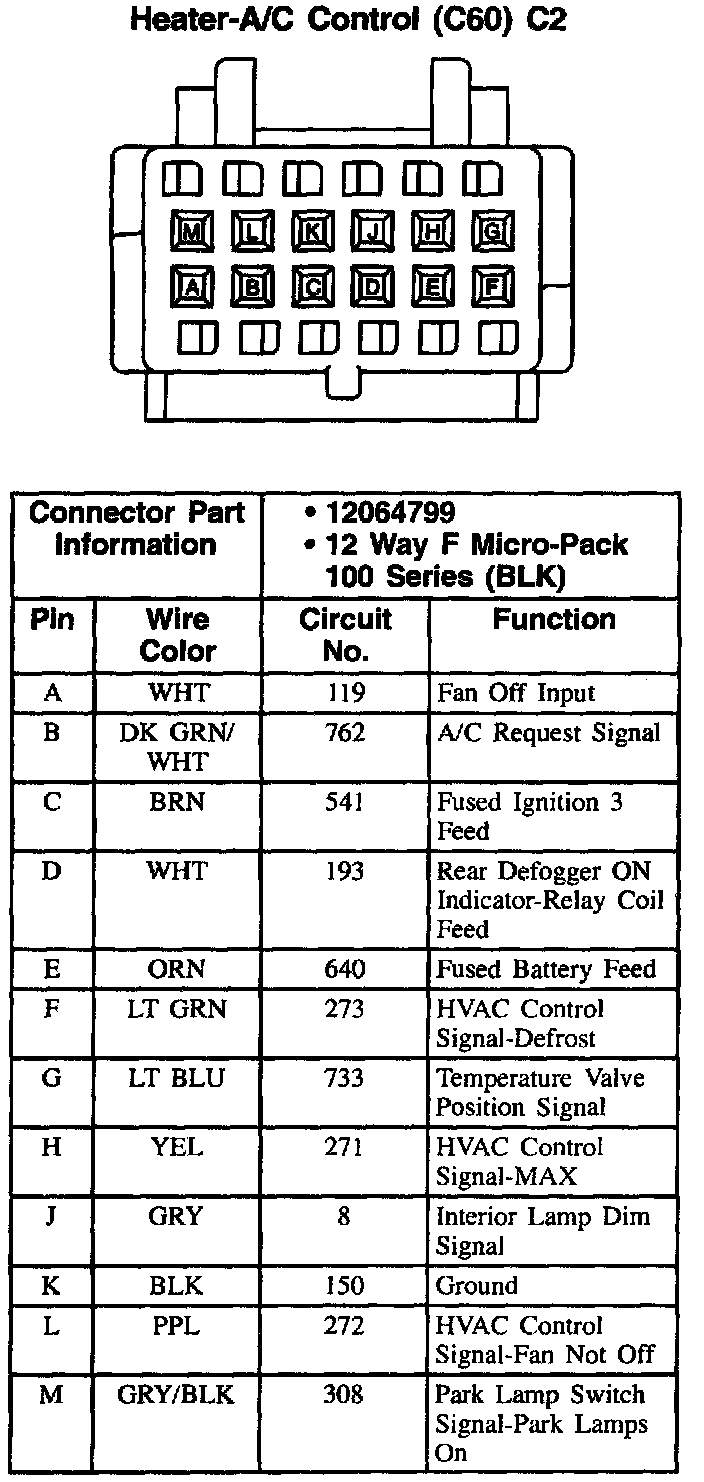

Heater A/C Control (C60): C2:
