Inlet Pipe Adapter

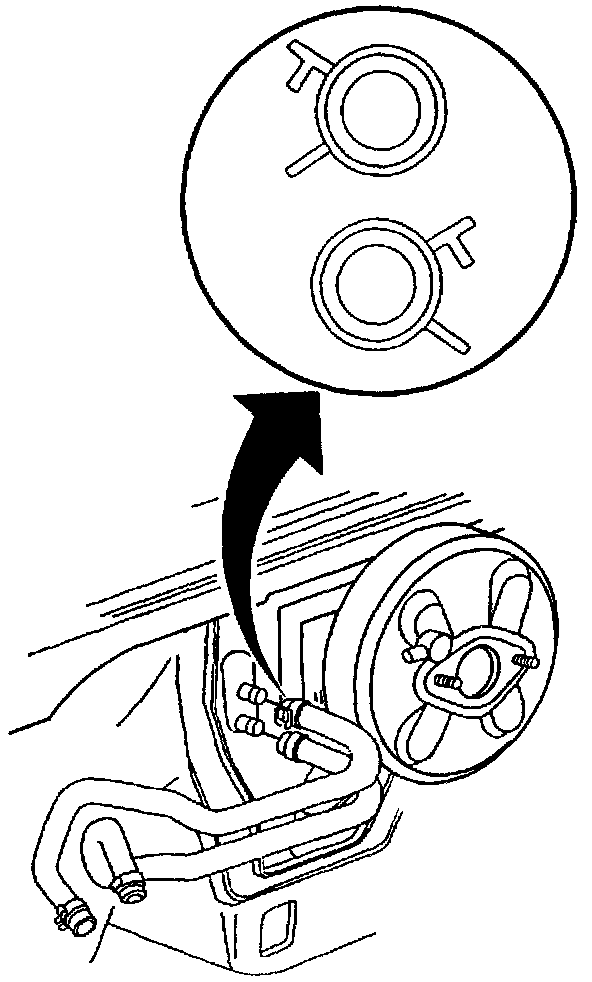

Clamp Positions To Front Of Dash:

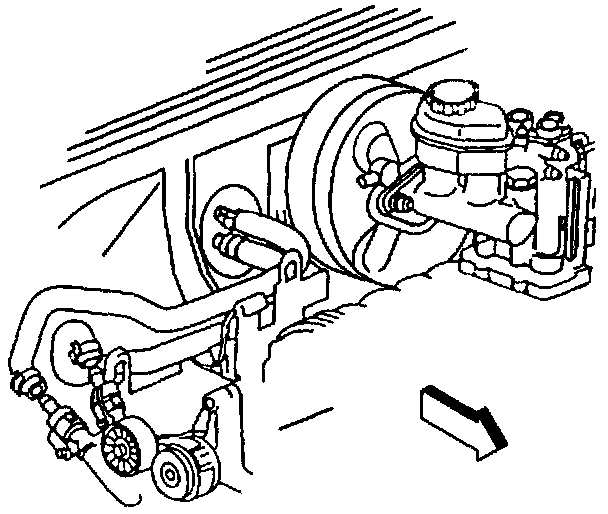

Heater Hoses:

Pipe Adapters - Engine Side:

Remove or Disconnect

1. Drain cooling system.
2. Fuel injector sight shield. Refer to Engine Cover Replacement Service and Repair.
3. Heater inlet hose from pipe adapter.
4. Pipe adapter mounting bolt.
5. Pipe adapter.

Install or Connect

1. Pipe adapter.
^ Lubricate O-ring.
2. Pipe adapter mounting bolt.

Tighten
^ Bolt to 6 N.m (53 lb. in.).

3. Heater inlet hose to pipe adapter.
4. Fuel injector sight shield. Refer to Engine Cover Replacement Service and Repair.
5. Drain cooling system.
