Accumulator: Service and Repair

REMOVAL PROCEDURE





1. Raise and support the vehicle.
2. Remove the oil pan.
3. Remove the filter.

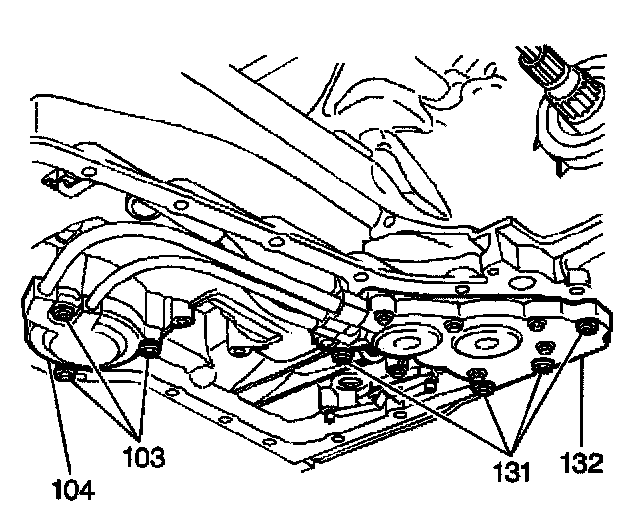

4. Remove the accumulator attaching bolts (131).
5. Remove the manual 2-1 band servo cover bolts (1103).

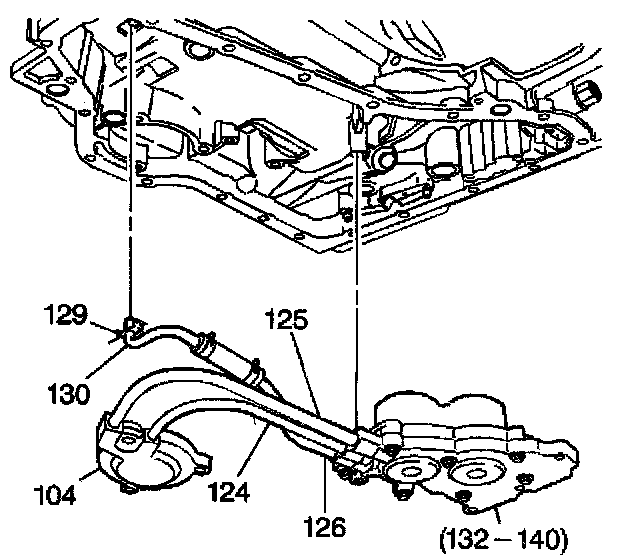

6. Remove the accumulator (132).
7. Remove the manual 2-1 band servo cover (104).

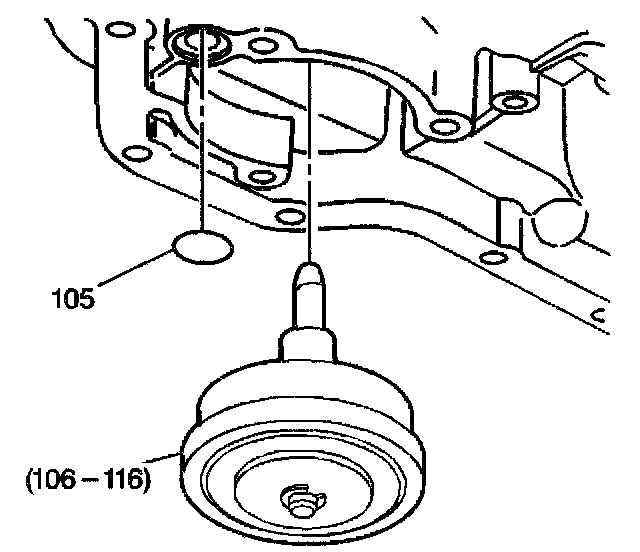

8. Remove the manual 2-1 band servo (106-116).
9. To disassemble, inspect and service the accumulator and manual 2-1 band servo, refer to Transaxle Unit Repair.

INSTALLATION PROCEDURE

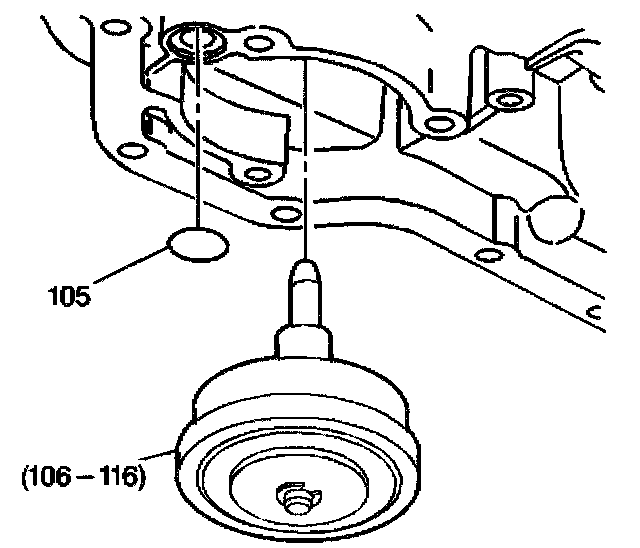

1. Install the manual 2-1 band servo (106-116).
2. Install the manual 2-1 band servo cover (104).
3. Install the manual 2-1 band servo cover bolts (103).
^ Tighten the manual 2-1 band servo cover bolts (103) to 24 Nm (17 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

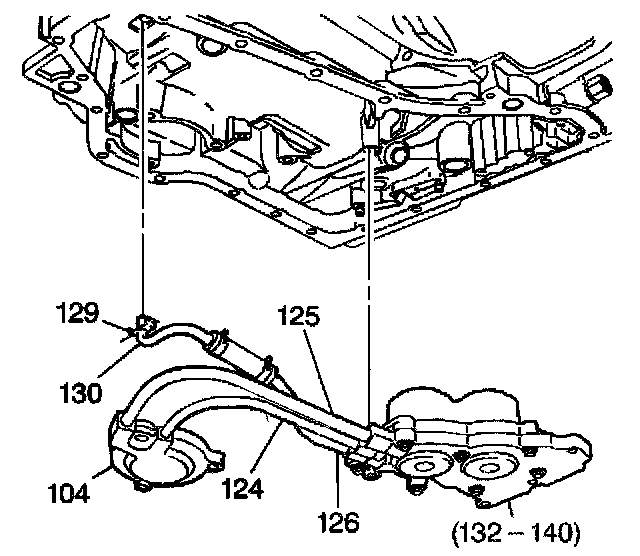

4. Install the accumulator (132).

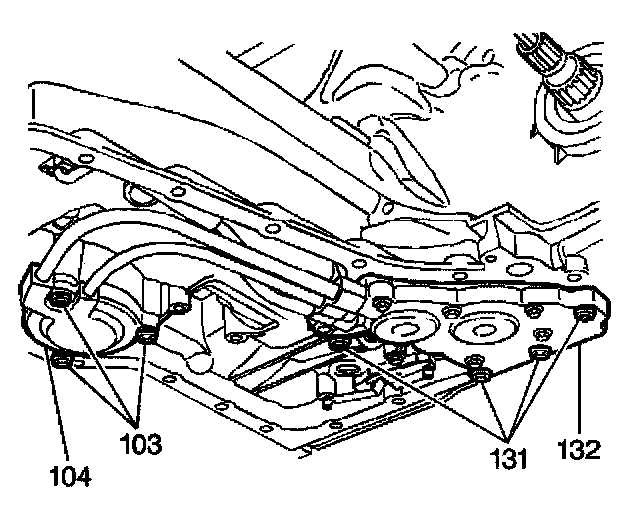

5. Install the accumulator attaching bolts (131).
Tighten the accumulator attaching bolts (131) to 11 Nm (97 inch lbs.).

6. If removed, install a new filter seal.
7. Install the filter.
8. Install the oil pan.
9. Lower the vehicle.
