Home >> Pontiac >> 1998 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Center Mounted Brake Lamp >> High Mounted Stop Lamp Assembly >> C2

C2

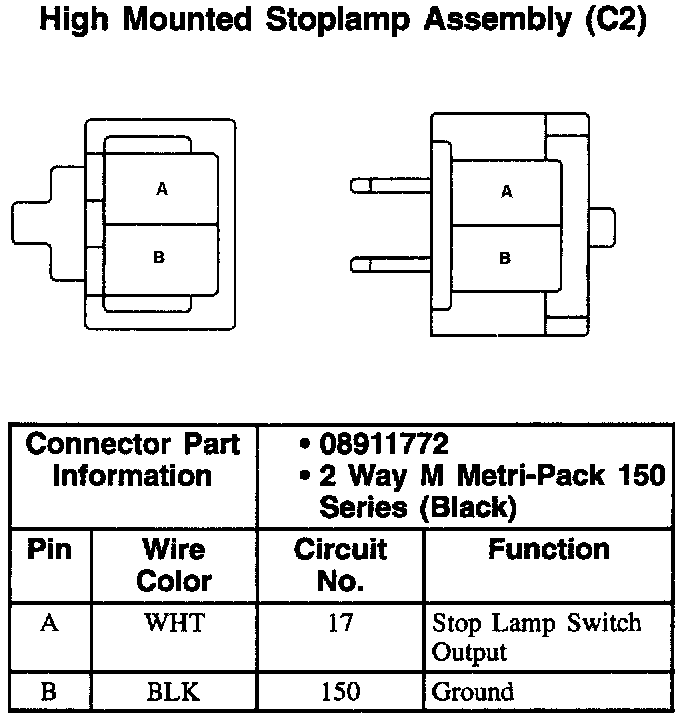

High Mounted Stoplamp Assembly (C2):
