Transmission Mount, M/T

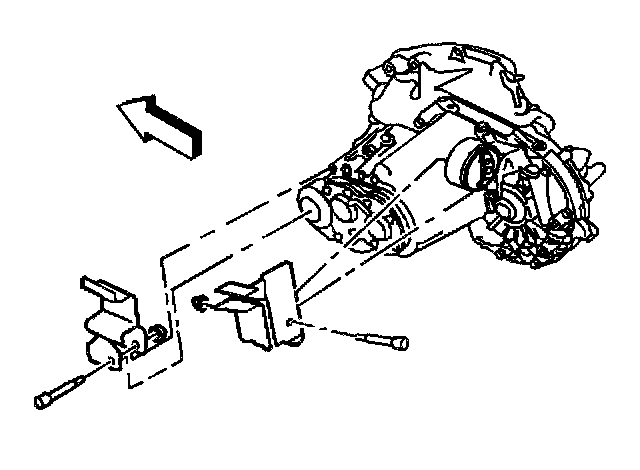

Front (lower) transaxle
mount bolts 60 Nm (44 ft. lbs.)

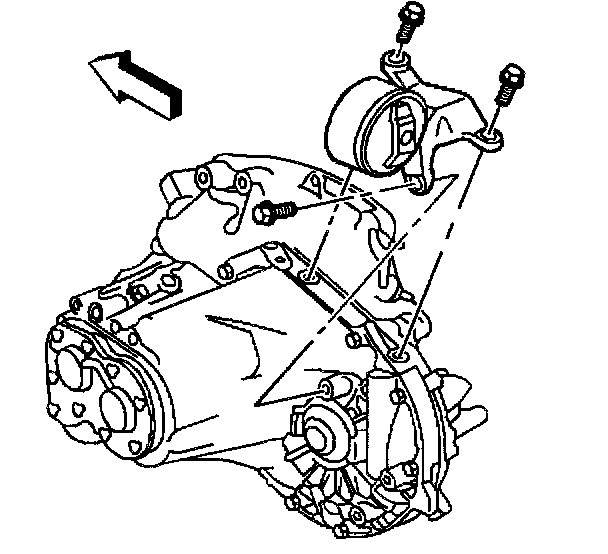

Rear (upper) transaxle
mount bolts 75 Nm (55 ft. lbs.)

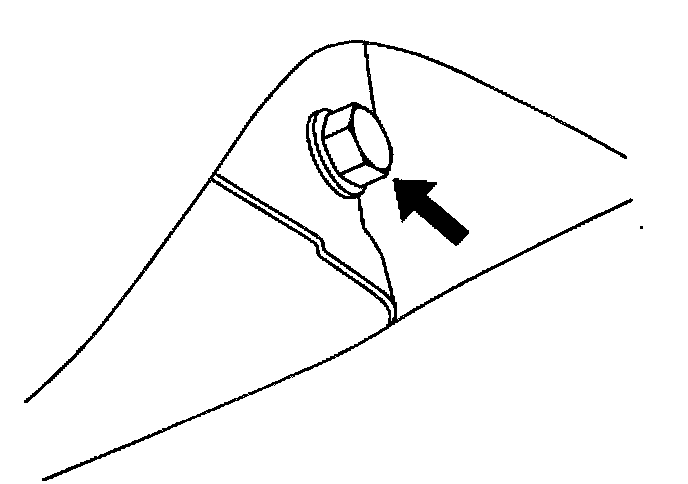

Rear transmission mount thru bolt 120 Nm (89 ft. lbs.)
