Firebird V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>

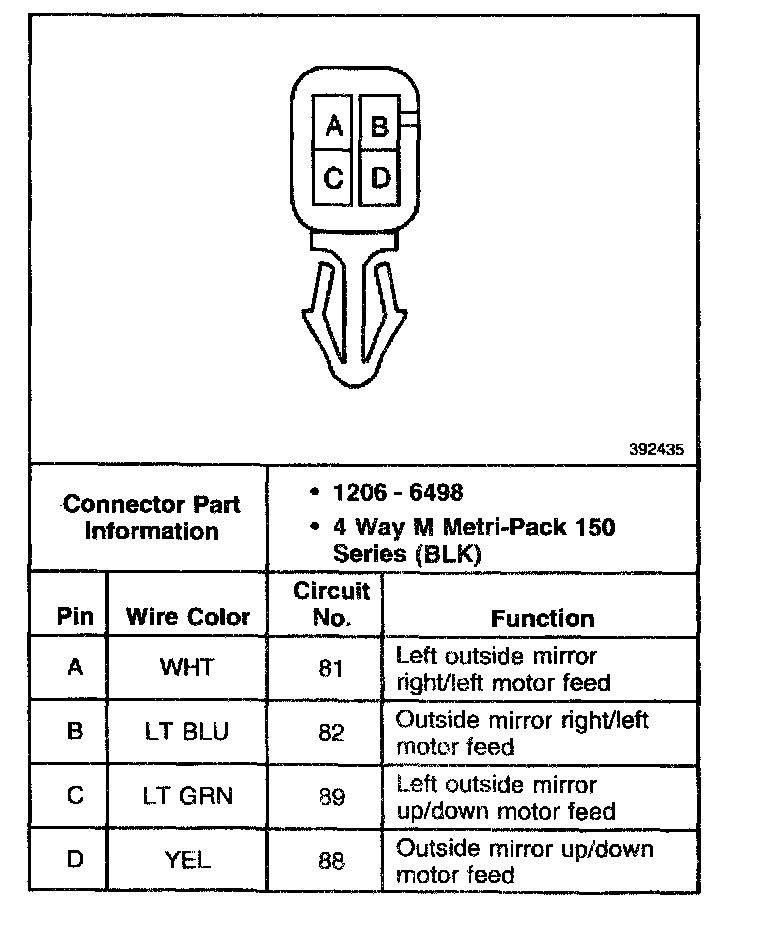

Left Outside Rearview Mirror
Left Outside Rearview Mirror
Left Rearview Mirror:
