Case: Service and Repair

Removal Procedure





1. Remove the transmission support. Refer to Transmission Support and Mount Assembly.
2. Remove the propeller shaft. Refer to Propeller Shaft Replacement - One-Piece in Propeller Shaft.
3. Remove the torque arm. Refer to Torque Arm Replacement in Rear Suspension.

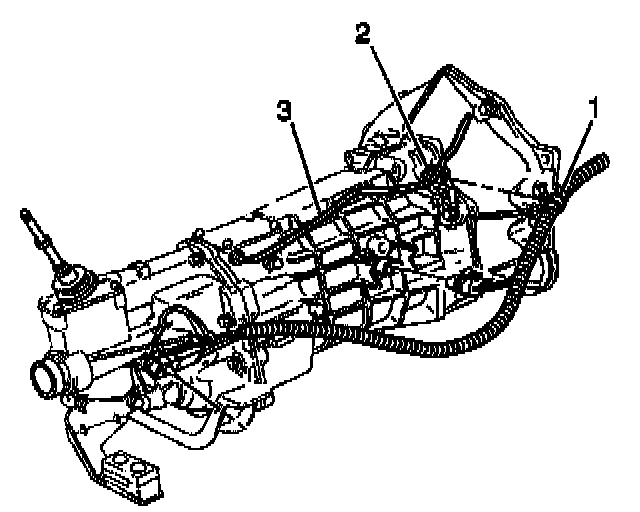

4. Lower the tail shaft of the transmission enough to access the transmission bolt (2).
5. Remove the transmission bolt (2).
6. Remove the vent tube (3) from the vent pipe.

Installation Procedure





1. Install the vent tube (3) to the vent pipe.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the transmission bolt (2).
^ Tighten the transmission bolt (2) to 50 Nm (37 ft. lbs.).
3. Raise the tail shaft of the transmission.
4. Install the torque arm. Refer to Torque Arm Replacement in Rear Suspension.
5. Install the propeller shaft. Refer to Propeller Shaft Replacement - One-Piece in Propeller Shaft.
6. Install the transmission support. Refer to Transmission Support and Mount Assembly.
