Home >> Pontiac >> 1999 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Locations >> Splice Locations >> S300 - S399 >> S314

S314

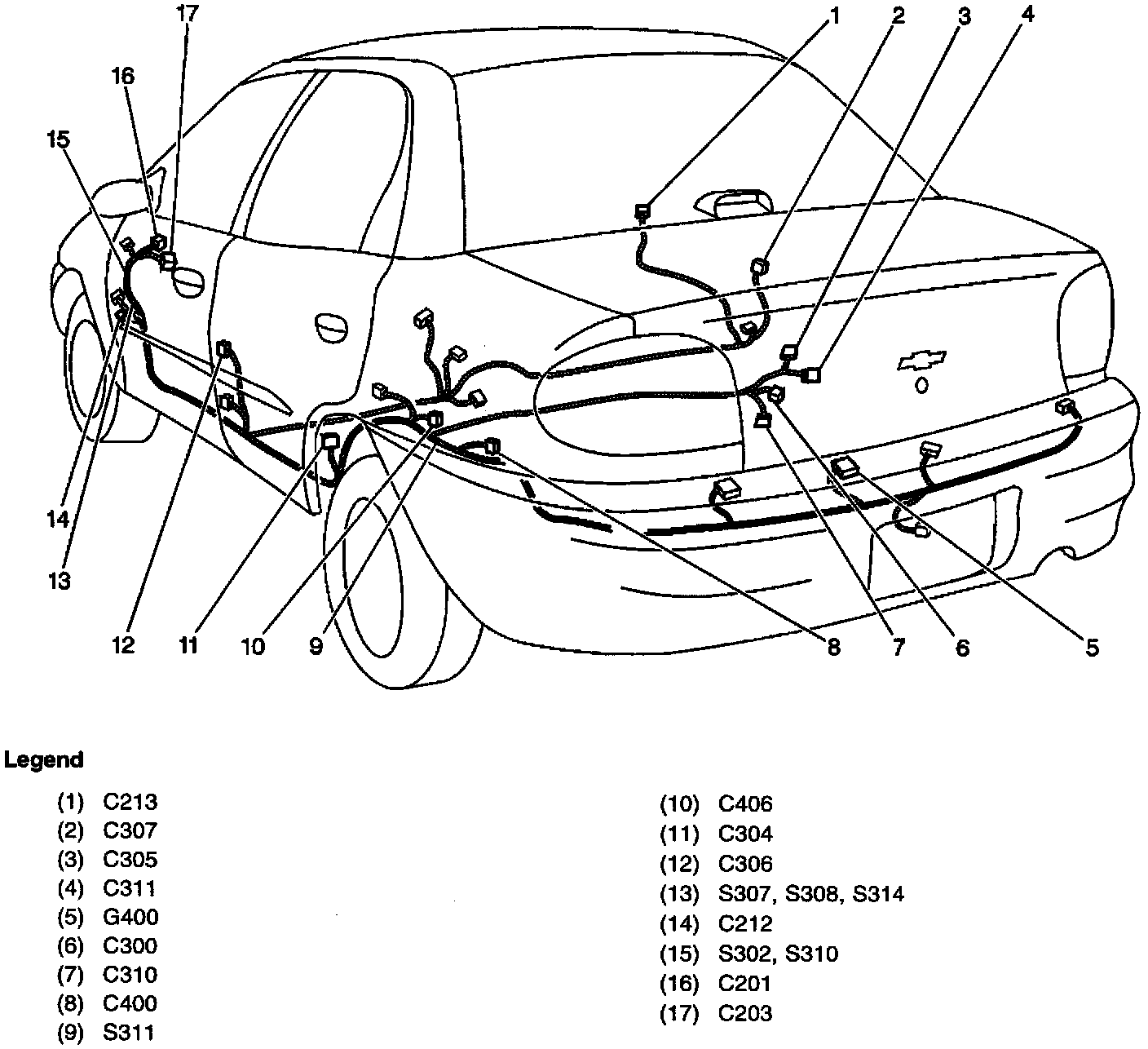

Floor Harness Routing (4-Door):
