Power Door Lock Switch Replacement

REMOVAL PROCEDURE

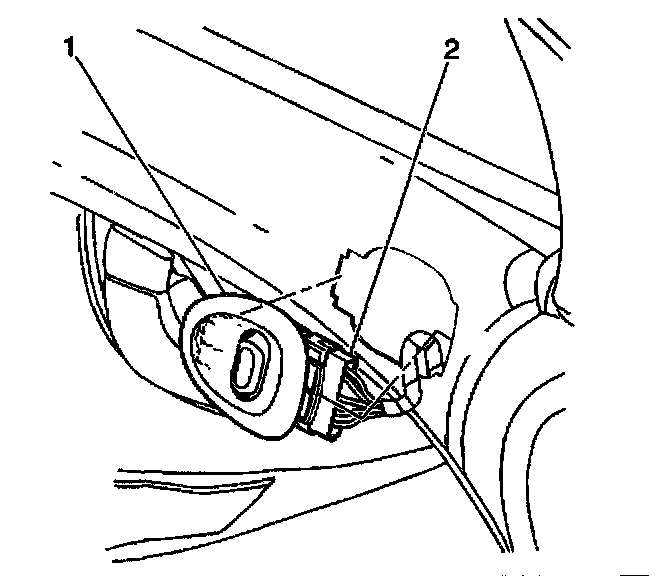

1. Position the power door lock bezel assembly (1) to the left front side of the door trim panel. Apply inboard pressure to the bezel's rear retaining clip in order to remove the bezel assembly.
2. Disconnect the power door lock connector (2) from the wire harness. Apply sufficient pressure in order to disengage the lock tab.

INSTALLATION PROCEDURE

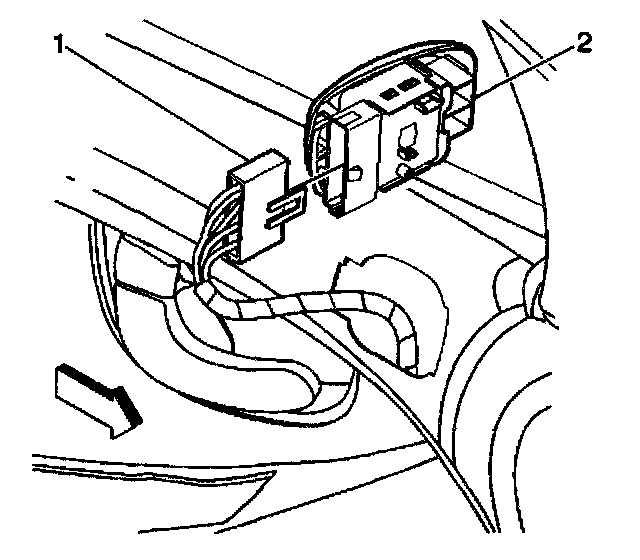

1. Engage the power door lock connector (1) to the wire harness. Apply sufficient pressure to engage the lock tab.
2. Position the power door lock bezel assembly (2) to the left front side of the trim panel. Apply inboard pressure to the bezel rear retaining clip in order to instal the bezel assembly.
