Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1999
>>
Grand AM V6-3.4L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Underhood Junction Block
>>
C7
C7

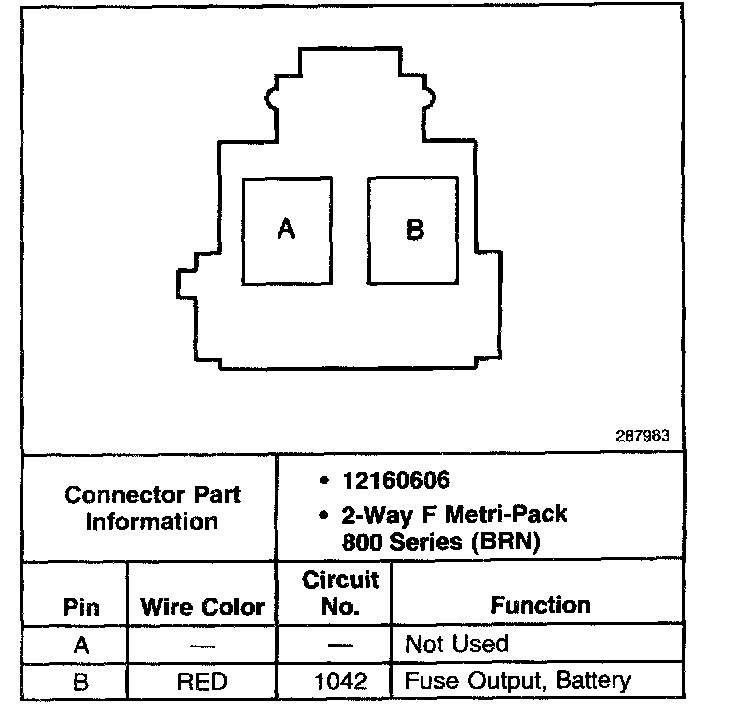

Underhood Junction Block C7:
