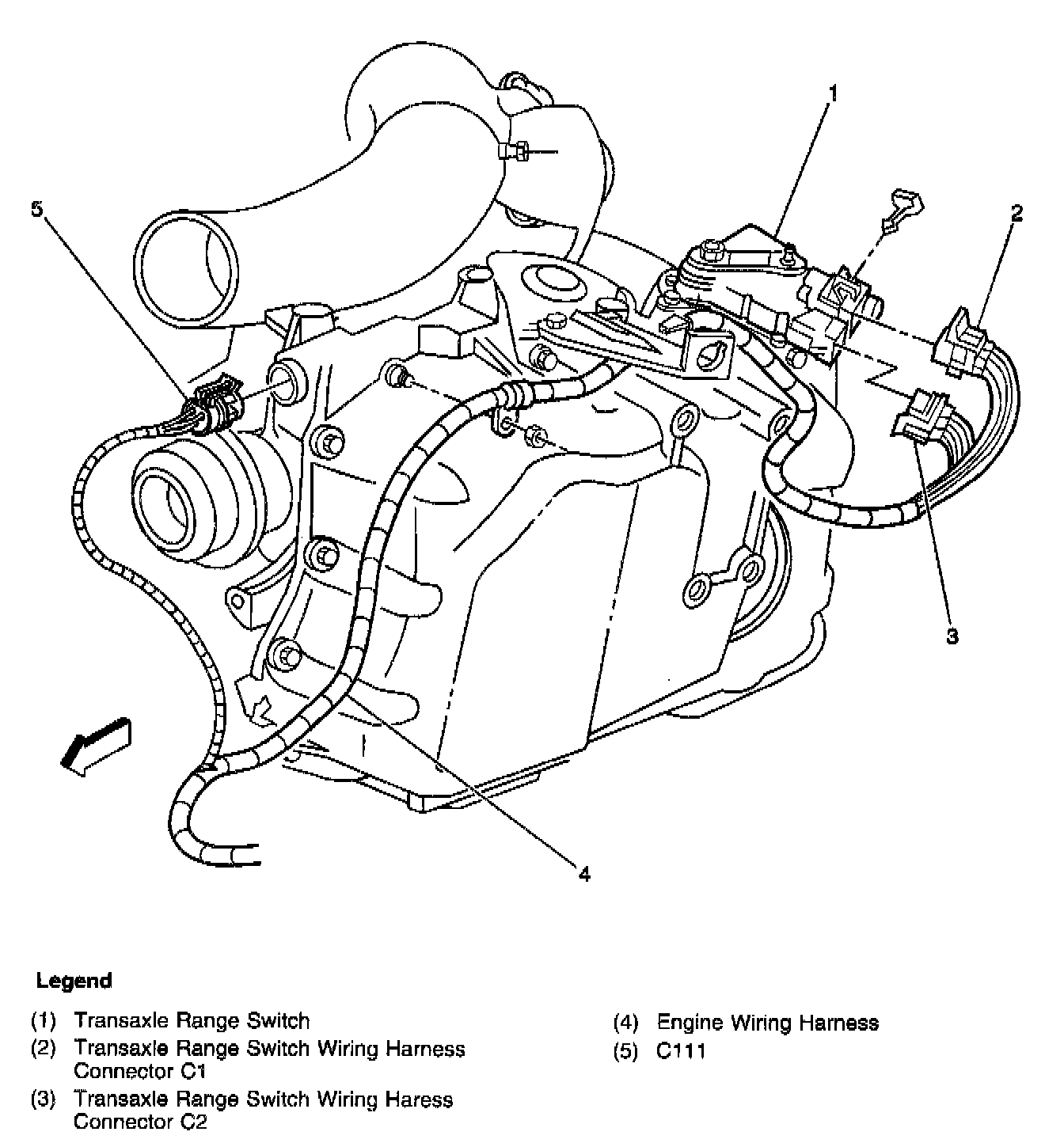

Transaxle Range Switch

Left Side Of Engine:




Left rear of the engine compartment, on the transaxle
