Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1999
>>
Grand Prix V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
HVAC System - Automatic
HVAC System - Automatic

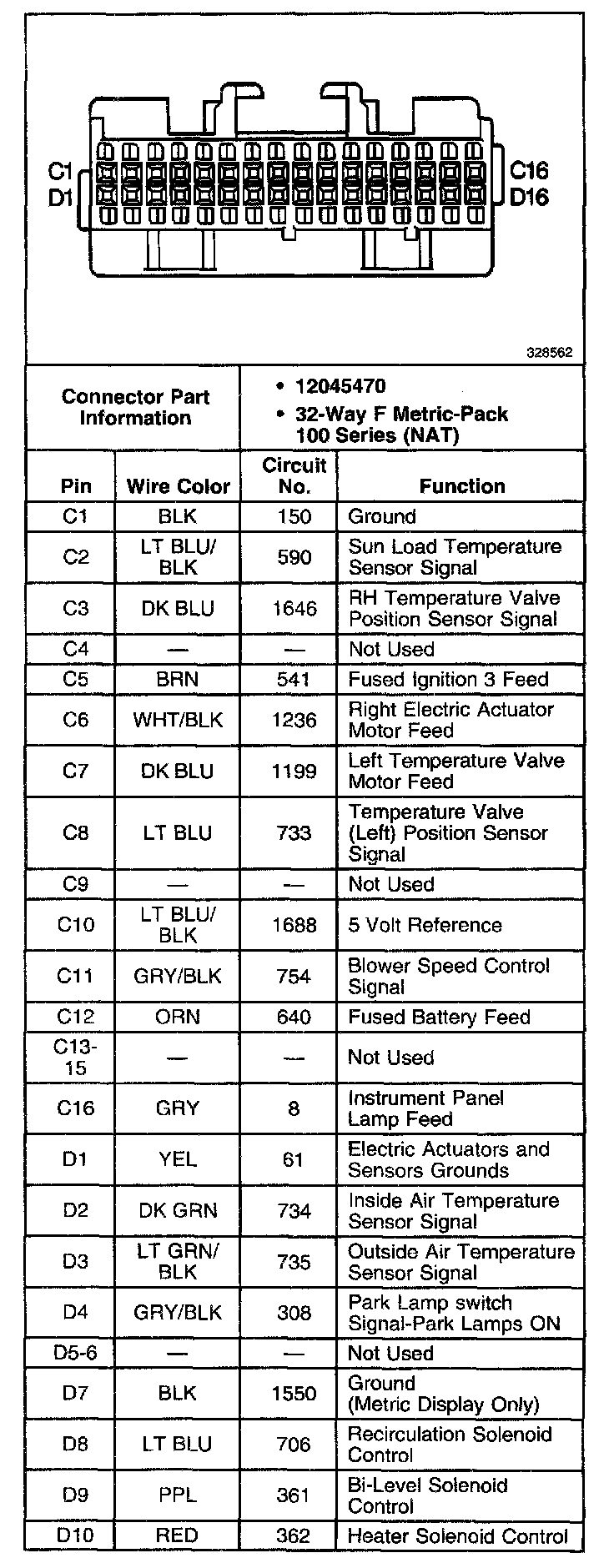

Heater - A/C Control: CJ2 (Part 1 Of 2):

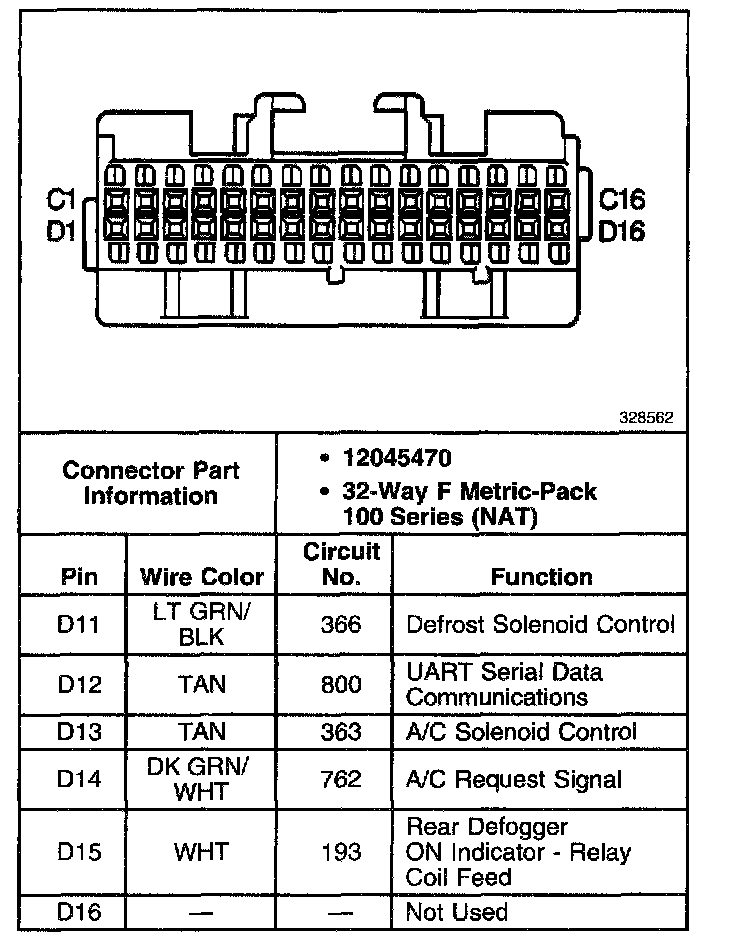

Heater - A/C Control: CJ2 (Part 2 Of 2):
