Front Door Weatherstrip: Service and Repair

REMOVAL PROCEDURE




1. Open the door.
2. On the coupe only, loosen the quarter trim panel. Refer to Trim Panel Replacement - Rear Quarter Upper (Coupe).
3. Remove the carpet retainers.
4. On the sedan only, remove the lower center pillar trim panel. Refer to Trim Panel Replacement - Lower Center Pillar

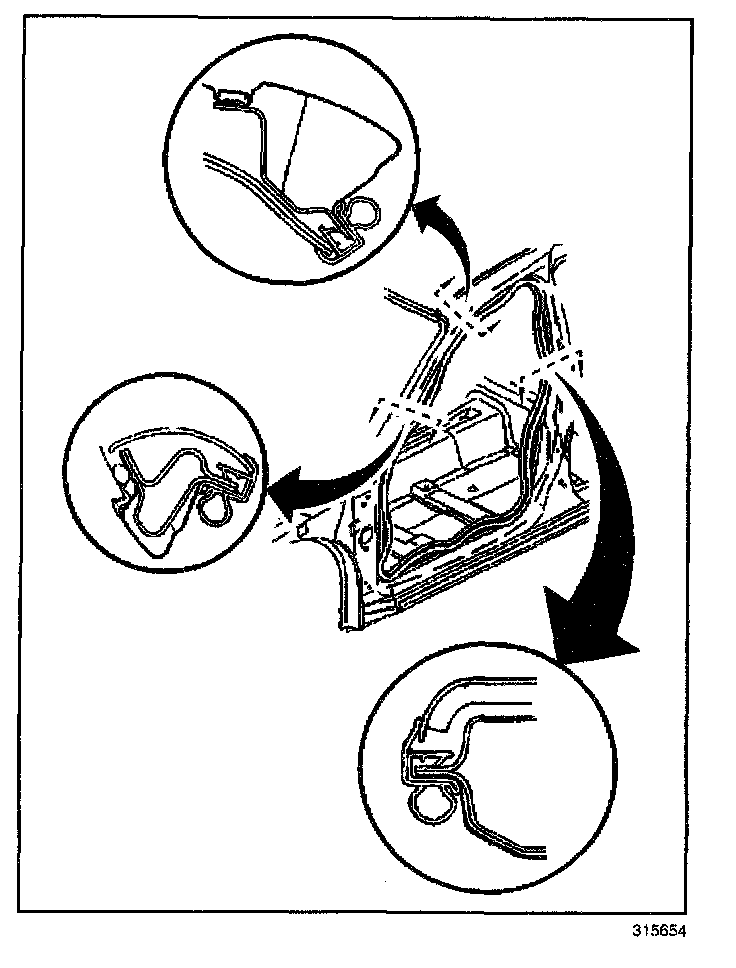

5. Grasp the weatherstrip.
6. Pull the weatherstrip off the flange on the body.

INSTALLATION PROCEDURE

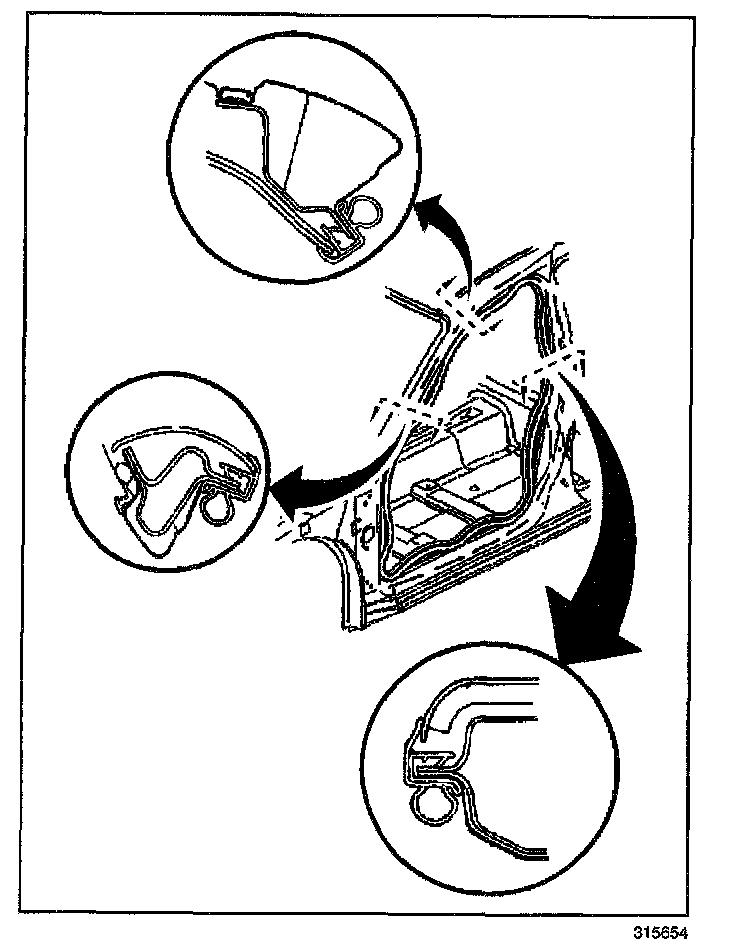

1. Install the weatherstrip to the flange on the body.
2. On the sedan only, install the lower center pillar trim panel Refer to Trim Panel Replacement - Lower Center Pillar
3. Install the carpet retainers.
4. Install the quarter inner trim panel.
5. Close the door.
