Fluid Pump: Service and Repair

Removal Procedure





1. Remove the case side cover. Refer to Case Side Cover Replacement.

Notice: Do NOT remove the three bolts which hold the pump together.

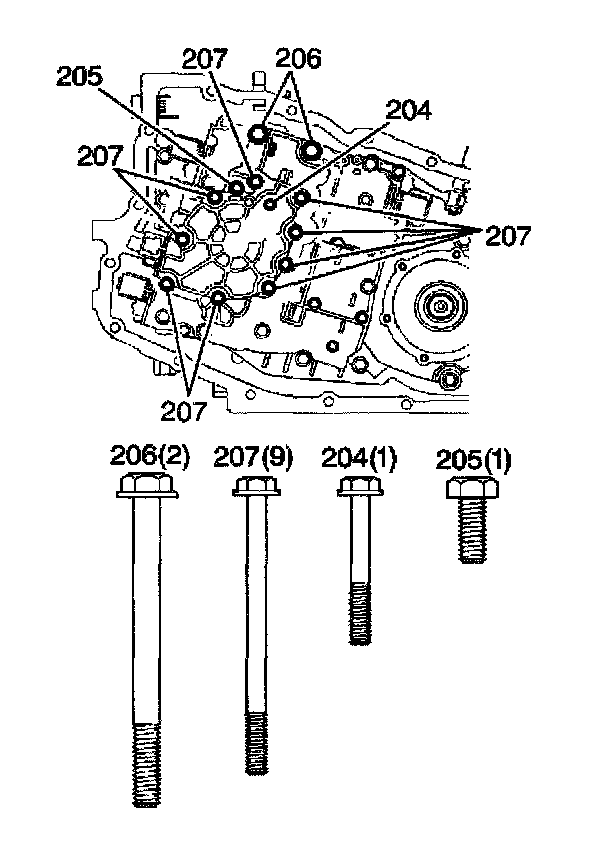

2. Remove the oil pump bolts (204-207).

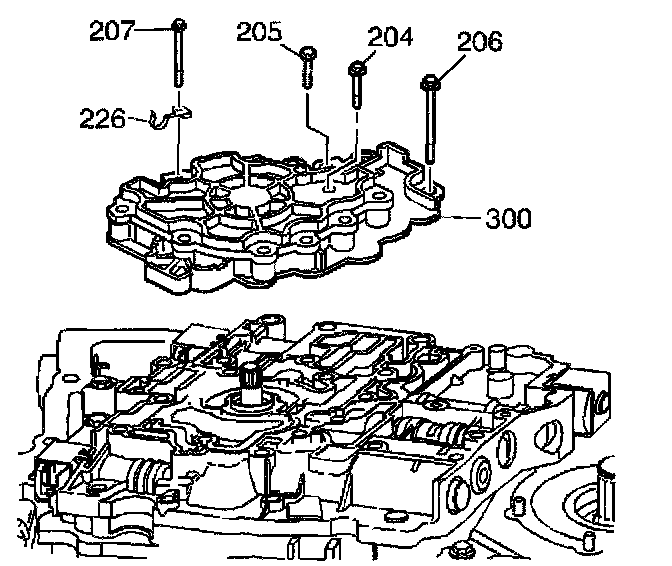

3. Remove the oil pump (300).
4. Inspect the oil pump. Refer to Transmission Overhaul.


Installation Procedure





1. Install the oil pump (300) to valve body.





Notice: Refer to Fastener Notice in Service Precautions.

2. Install the oil pump bolts (204-207).
- Tighten the M6 bolt to 11 Nm (97 inch lbs.).
- Tighten the M6 bolt to 24 Nm (18 ft. lbs.).
3. Install the case side cover. Refer to Case Side Cover Replacement.
