Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor Replacement

REMOVAL PROCEDURE
1. Disconnect the CMP sensor harness connector at the sensor.

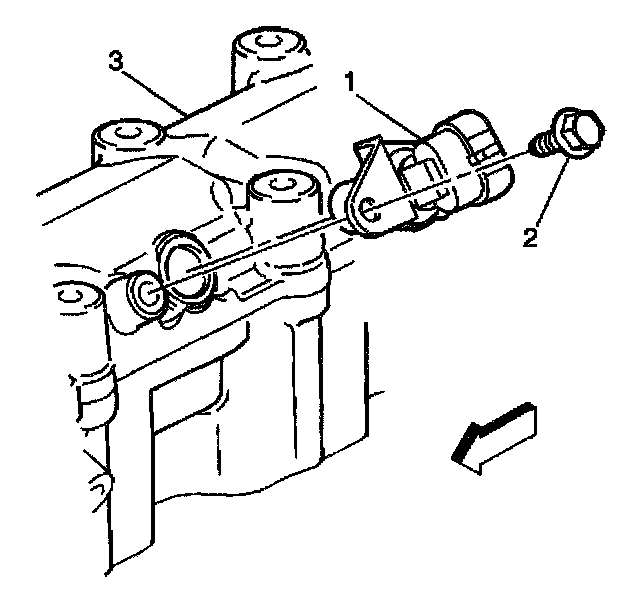

2. Remove the CMP sensor bolt (2).
3. Remove the CMP sensor (1) from the camshaft housing (3).

INSTALLATION PROCEDURE

IMPORTANT: Inspect the CMP sensor O-ring for the following conditions:
^ Wear
^ Cracks
^ Leakage

Replace the CMP sensor O-ring if necessary. Lubricate new O-ring with engine oil before installing.

1. Install the CMP sensor (1) into the camshaft housing (3).

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the CMP sensor bolt (2).

Tighten
Tighten the CMP sensor bolt to 15 N.m (11 lb ft).

3. Connect the CMP sensor harness electrical connector.
