Accelerator Pedal: Service and Repair

Accelerator Controls Pedal Replacement






REMOVAL PROCEDURE

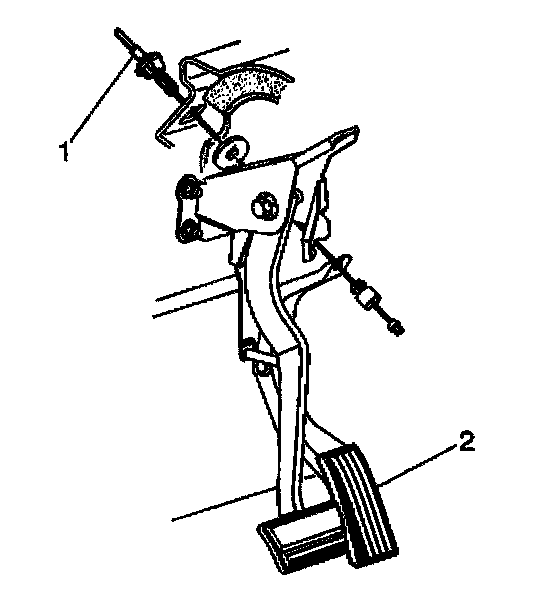

1. Remove the left sound insulator.
2. Remove the release cable (1) retainer from the lever assembly.
3. Remove the nuts to the cowl.
4. Remove the pedal assembly (2).

INSTALLATION PROCEDURE
1. Install the pedal assembly (2) to the cowl.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the nuts to the cowl.

Tighten
Tighten the nuts to 30 N.m (25 lb ft).

3. Slip the accelerator cable (1) through the slot in the rod and then install the retainer in the rod, being sure that it is seated.
4. Install the left sound insulator.
5. Inspect for correct opening and closing positions by operating the accelerator pedal. Make sure that the throttle valve reaches a wide-open throttle position. If it does not, inspect for damaged or bent brackets, levers, or other components; or, for poor carpet under the accelerator pedal.
