Engine Flywheel Removal

Important: Note the position and direction of the engine flywheel before removal. The flywheel does not use a locating pin for alignment and will not initially seat against the crankshaft flange, but will be pulled onto the crankshaft by the engine flywheel bolts. This procedure requires a three stage tightening process.

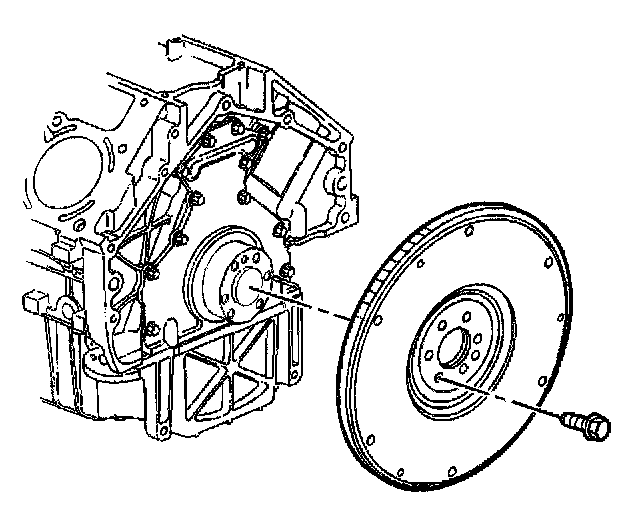

1. Remove the engine flywheel bolts.





2. Remove the manual transmission engine flywheel.
