Bell Housing: Service and Repair

Removal Procedure





1. Remove the manual transmission.

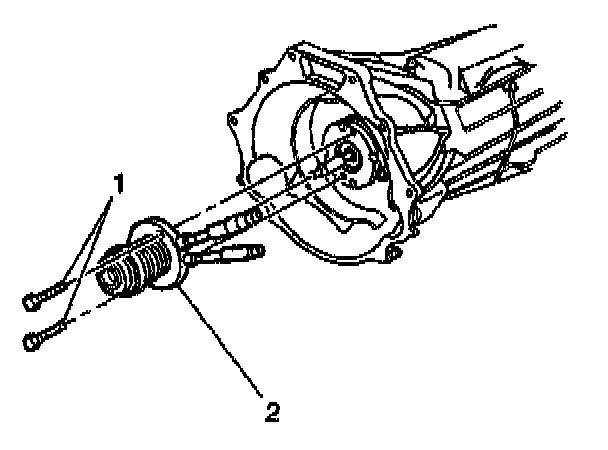

2. Remove the clutch actuator cylinder bolts (1).





3. Remove the transmission bolts (3).

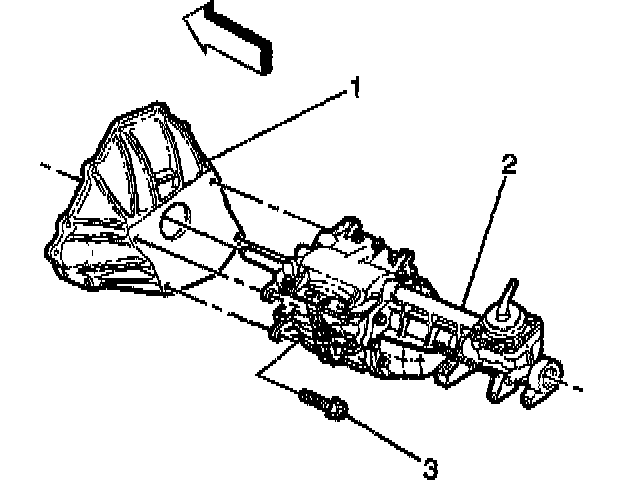

4. Separate the flywheel/clutch housing (1) from the transmission (2).
Remove the flywheel/clutch housing (1) and clutch actuator cylinder from the transmission (2).


Installation Procedure





1. Install the flywheel/clutch housing (1) and clutch actuator cylinder to the transmission (2).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the transmission bolts (3).
^ Tighten the 5-speed transmission bolts (3) to 75 Nm (55 ft. lbs.).
^ Tighten the 6-speed transmission bolts to 50 Nm (37 ft. lbs.).





3. Install the clutch actuator cylinder bolts (1).
^ Tighten the clutch actuator cylinder bolts (1) to 8 Nm (71 inch lbs.).
4. Install the manual transmission.
