Shift Solenoid: Service and Repair

Removal Procedure





1. Remove the transmission.

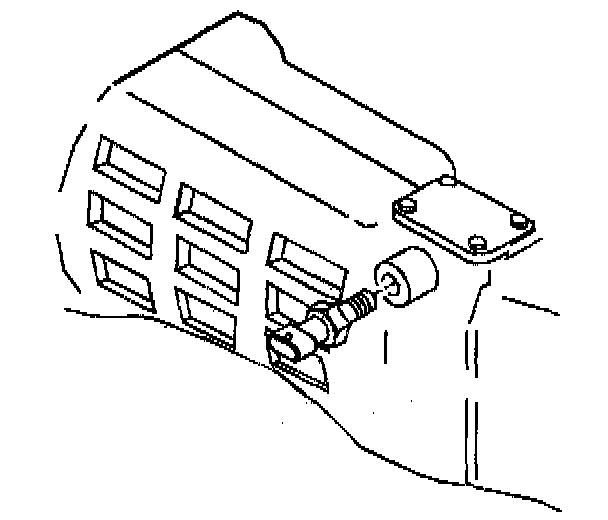

2. Remove the skip shift solenoid from the transmission.


Installation Procedure

Notice: Refer to Fastener Notice in Service Precautions.





1. Install the skip shift solenoid to the transmission.
^ Tighten the skip shift solenoid to 40 Nm (30 ft. lbs.).
2. Install the transmission.
