Rear Fender Liner: Service and Repair

Wheelhouse Splash Shield Replacement

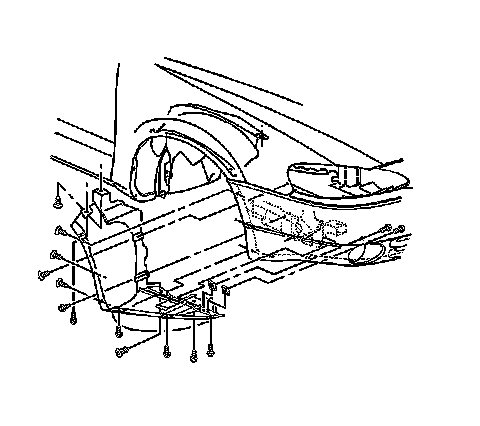

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.




3. Remove the splash shield retainers from the front wheelhouse panel.
4. Remove the splash shield bolts from the front wheelhouse panel.
5. Remove the splash shield from the front wheelhouse panel.

Installation Procedure




1. Install the splash shield to the front wheelhouse panel.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the splash shield bolts to the front wheelhouse panel.

Tighten the splash shield bolts to 2.5 N.m (55 lb in).

3. Install the splash shield retainers to the front wheelhouse panel.
4. Install the tire and wheel assembly.
5. Lower the vehicle.
