Wiper Motor Replacement
REMOVAL PROCEDURETOOLS REQUIRED
J 39232 Wiper Transmission Separator
1. Remove the wiper arm assemblies from the wiper transmission drive shaft.
2. Remove the air inlet grille panel from the vehicle.
3. Remove the connector from the wiper motor.

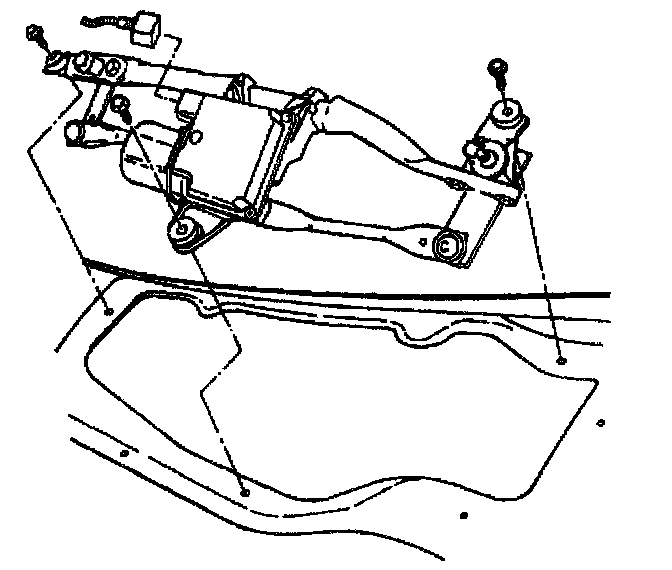

4. Remove 3 screws and the wiper drive system module from the vehicle.

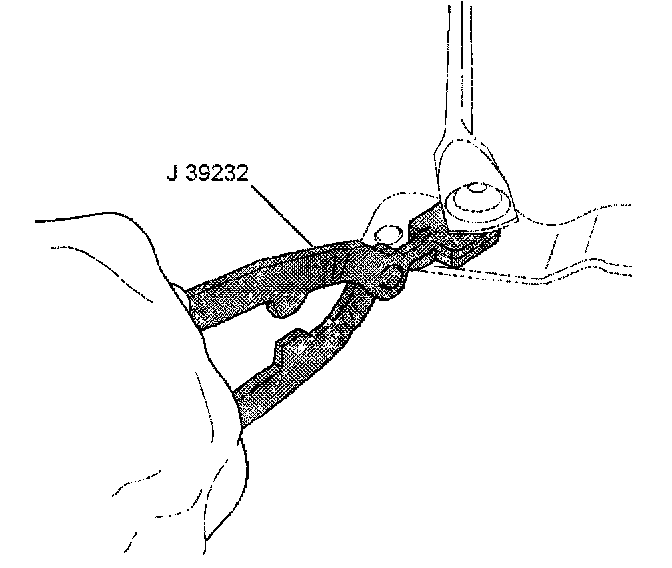

5. Remove the wiper transmission from the wiper motor crank arm using J 39232.

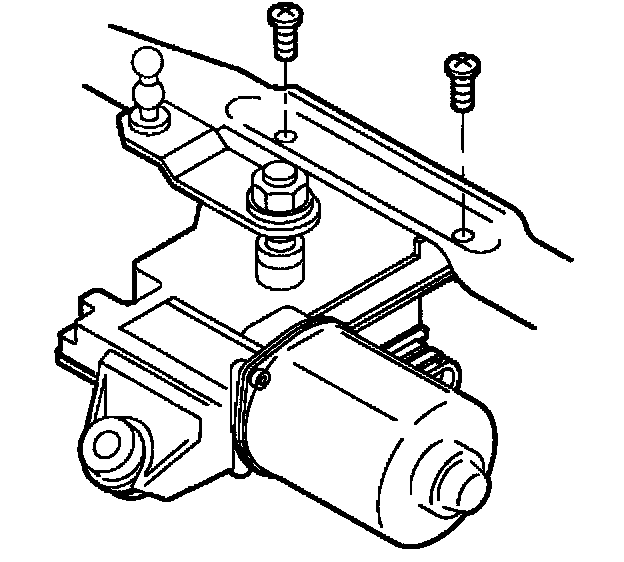

6. Remove two screws and the wiper motor from the tube frame.
INSTALLATION PROCEDURE
TOOLS REQUIRED
J 39529 Wiper Transmission Installer
NOTE: Refer to Fastener Notice in Service Precautions.
1. Install the wiper motor onto the tube frame with screws.
Tighten
Tighten the screws to 10 N.m (88 lb in).

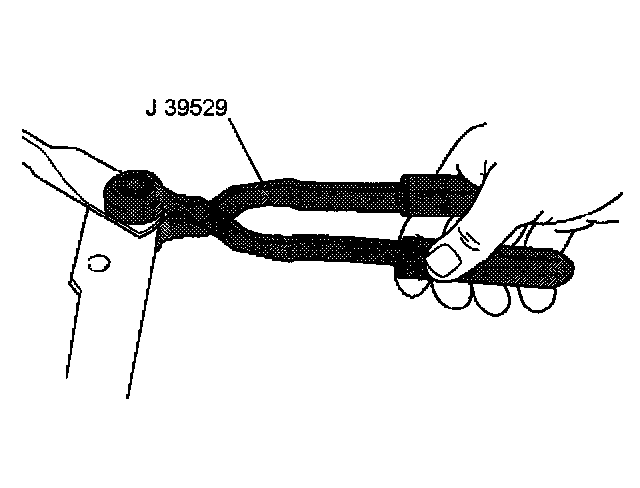

2. Install the wiper transmission onto the wiper motor crank arm using the J 39529.
3. Install the wiper drive system module onto the vehicle with 3 screws.
Tighten
Tighten the screws to 10 N.m (88 lb in).
4. Install the connector onto the wiper motor.
5. Install the air inlet grille panel.
6. Install the wiper arm assemblies onto the wiper transmission drive shaft.
7. Operate the wipers and check for proper operation.
