License Plate Frame: Service and Repair

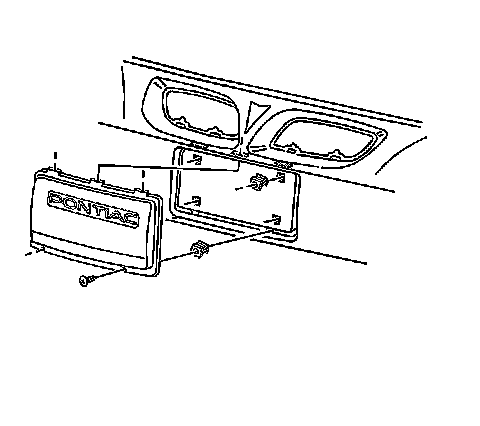

Front License Plate Mount Trim Cover Replacement

Removal Procedure





1. Remove the screws from the front license cover.
2. Remove the front license cover from the front bumper fascia.



Installation Procedure





1. Install the front license cover to the front bumper fascia.

Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the screws to the front license cover.

Tighten the license plate cover screws to 2 N.m (18 lb in).
