Ash Tray: Service and Repair

Ashtray Replacement

Removal Procedure

1. Remove the instrument panel (I/P) cluster trim plate. Refer to Instrument Cluster Trim Panel Replacement (Instrument Cluster Trim Panel Replacement) .
2. Remove the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Front Floor Console Trim Plate Replacement) .

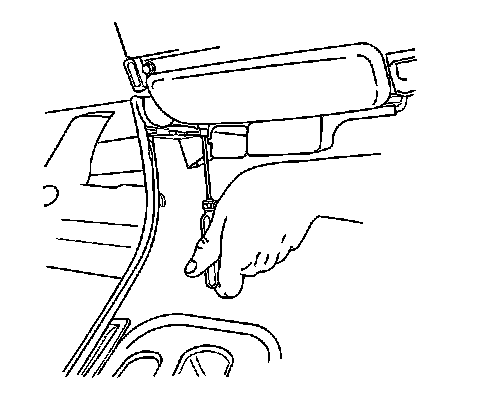

3. Remove the ashtray from the bracket.

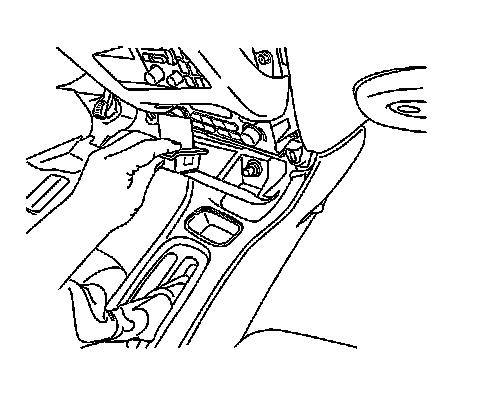

4. Remove the lower ashtray bracket screws.

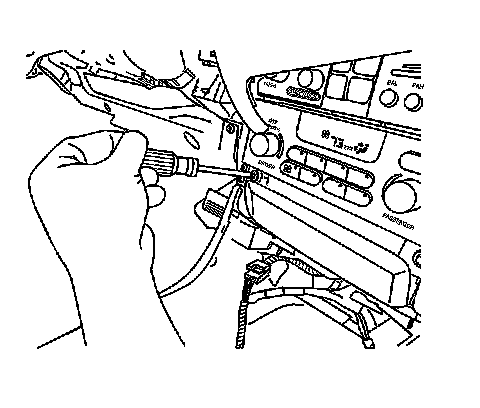

5. Remove the upper ashtray bracket screws.




6. Remove the ashtray bracket from the I/P.

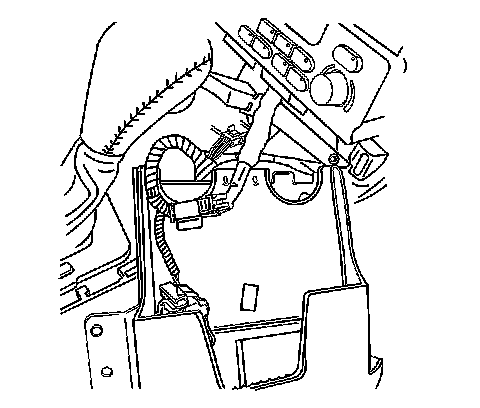

7. Disconnect the electrical connector from the ashtray bracket.



Installation Procedure





1. Connect the electrical connector to the ashtray bracket.
2. Install the ashtray bracket to the I/P.





Notice: Refer to Fastener Notice in Cautions and Notices.

3. Install the upper ashtray bracket screws.

Tighten the screws to 2 N.m (18 lb in).





4. Install the lower ashtray bracket screws.

Tighten the screws to 2 N.m (18 lb in).





5. Install the ashtray to the bracket.
6. Install the front floor console trim plate. Refer to Front Floor Console Trim Plate Replacement (Front Floor Console Trim Plate Replacement) .
7. Install the I/P cluster trim plate. Refer to Instrument Cluster Trim Panel Replacement (Instrument Cluster Trim Panel Replacement) .
