Water Pump: Service and Repair

Removal Procedure
^ Tools Required
- J 38185 Hose Clamp Pliers
- J 36660-A Torque Angle Meter





1. Partially drain the cooling system. Refer to Draining and Filling Cooling System.
2. Loosen water pump pulley bolts.
3. Remove drive belt. Refer to Drive Belt Replacement.
4. Remove the water pump pulley bolts.

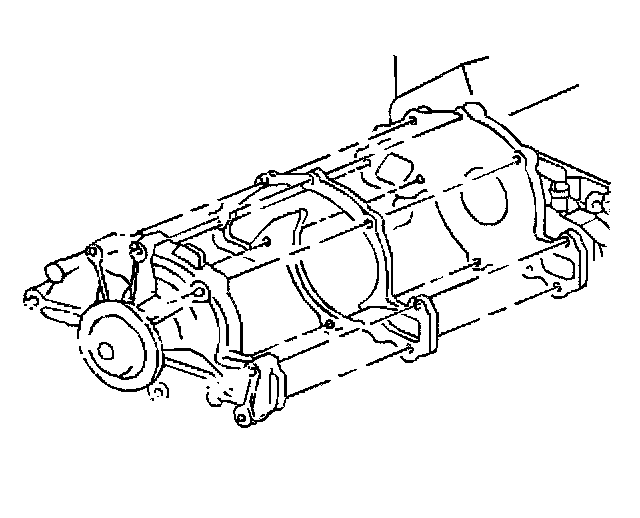

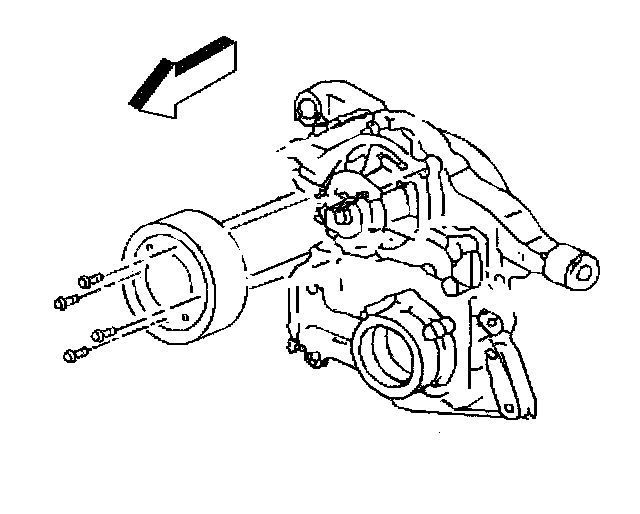

5. Remove water pump pulley.
6. Remove power steering pump mounting bolts and reposition.

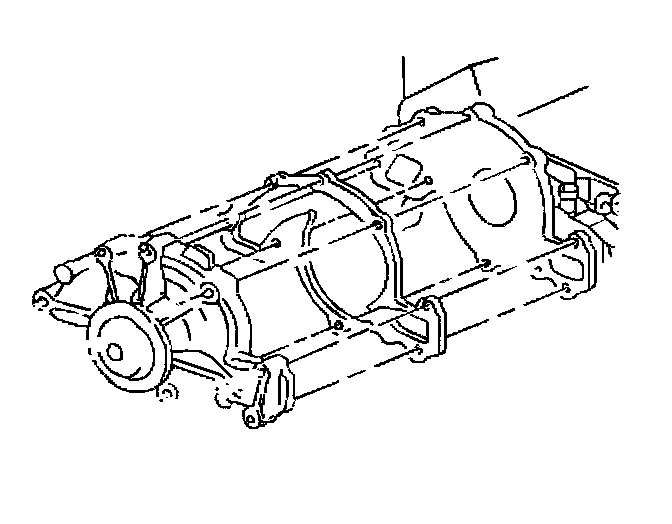

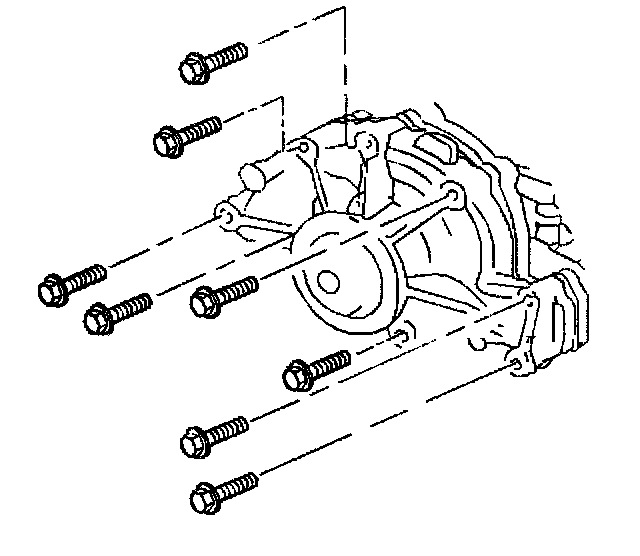

7. Remove the water pump bolts.





8. Remove water pump.
9. Remove the water pump gasket.
10. Clean and inspect the water pump mating surfaces.

Installation Procedure





1. Install the gasket and the water pump.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the bolts to the water pump using the J 36660-A
^ Tighten the long water pump bolts to 20 Nm (15 ft. lbs.) plus 40 degrees.
^ Tighten the short water pump bolts to 15 Nm (11 ft. lbs.) plus 80 degrees.





3. Install the water pump pulley. Loosely install the water pump pulley bolts.
4. Install the power steering pump with mounting bolts.
5. Install the drive belt. Refer to Drive Belt Replacement.
6. Tighten the water pump pulley bolts.
^ Tighten the water pump pulley bolts to 13 Nm (115 inch lbs.).
7. Install the accessory electrical junction block.
8. Fill the cooling system. Refer to Draining and Filling Cooling System.
9. Inspect for leaks.
