Air Door Cable: Service and Repair

REMOVAL PROCEDURE




1. Remove the Instrument Panel (IP) accessory trim plate.

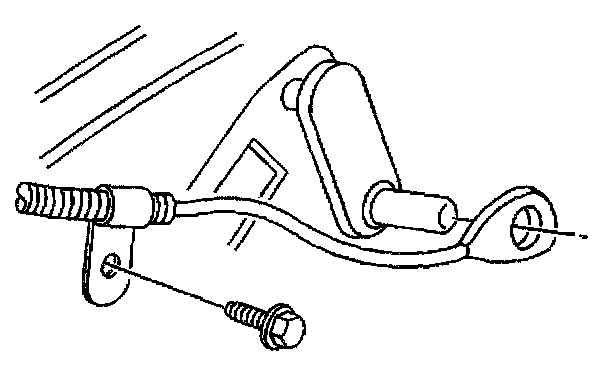

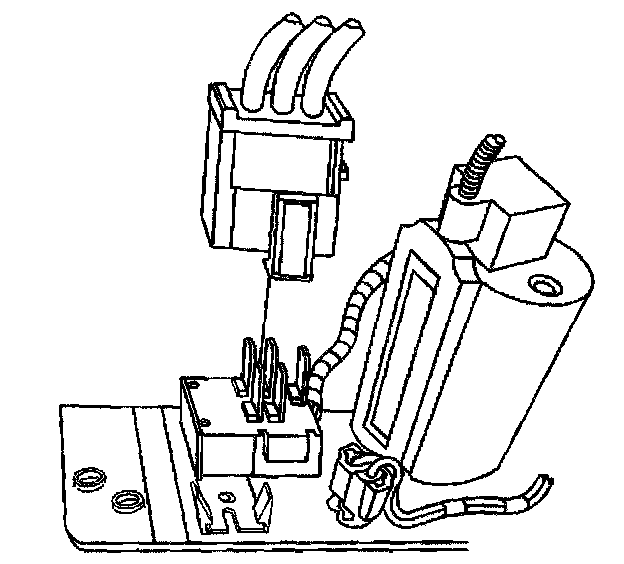

2. Disconnect the temperature control cable from the temperature valve lever.
3. Remove the cable clip retaining screw.




4. Remove the control assembly.
5. Remove the cable cover.
6. Remove the cable clip from the control assembly.
7. Remove the cable.

INSTALLATION PROCEDURE




1. Install the cable to the control assembly.
2. Lock the cable clip to the control assembly.
3. Install the cable cover.




4. Install the cable to the temperature valve lever.

NOTE: Refer to Fastener Notice in Service Precautions.

5. Install the cable clip and screw to the HVAC module.

Tighten
Tighten the screw to 2 N.m (18 lb in).

6. Install the control assembly.
7. Install the Instrument Panel (IP) accessory trim plate.
