Front Fender Liner: Service and Repair

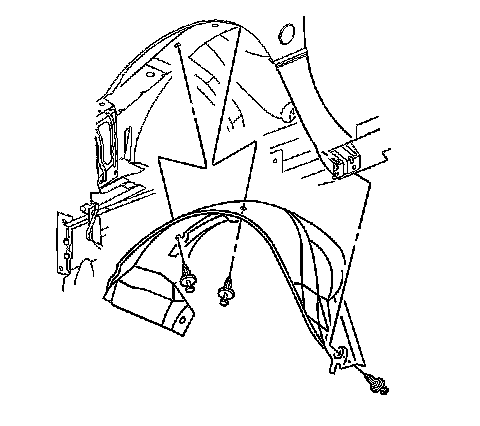

Wheelhouse Panel Replacement

Removal Procedure

1. Remove the front wheelhouse extension.
2. Remove the push in retainers from the wheelhouse panel.




3. Remove the wheelhouse panel.

Installation Procedure




1. Install the wheelhouse panel to the vehicle.
2. Install the push in retainers to secure the wheelhouse panel.
3. Install the wheelhouse extension.
