Ignition Switch
Ignition Switch Replacement - On VehicleRemoval Procedure
Caution: Refer to SIR Caution in Service Precautions.
1. Disable the SIR system.
2. Remove the instrument panel driver knee bolster and deflector.

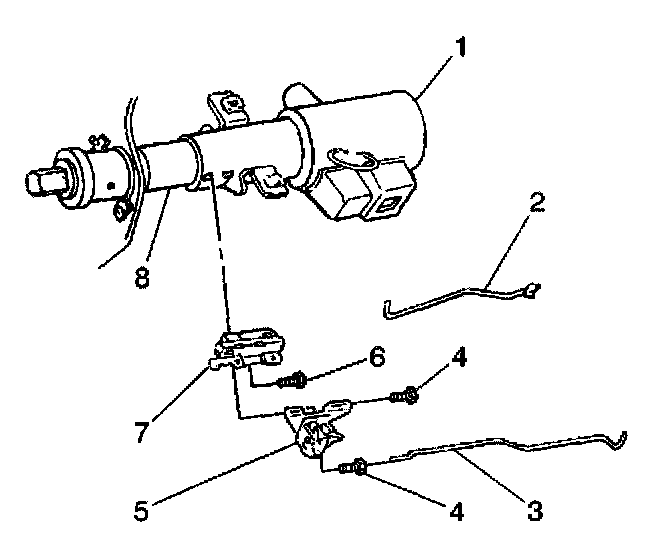

3. Ensure that the following components are in the LOCK (1) position:
- The steering column lock
- The ignition cylinder
4. Remove the steering column upper support nuts from the steering column support.
5. Remove the steering column dash cover bolts.
6. Remove the lower column (8).
7. Remove the brake switches.
8. Remove the electrical connectors from the dimmer switch (5).
9. Remove the electrical connectors from the ignition switch (7).
10. Remove the bolts/screws (4).
11. Remove the dimmer switch (5).
12. Remove the Bolt/Screw (6).
13. Disconnect the ignition switch actuator rod (2).
14. Remove the ignition switch (7).
15. Remove the automatic transmission park lock cable, if equipped.
Installation Procedure
1. Install the automatic park lock cable, if equipped.

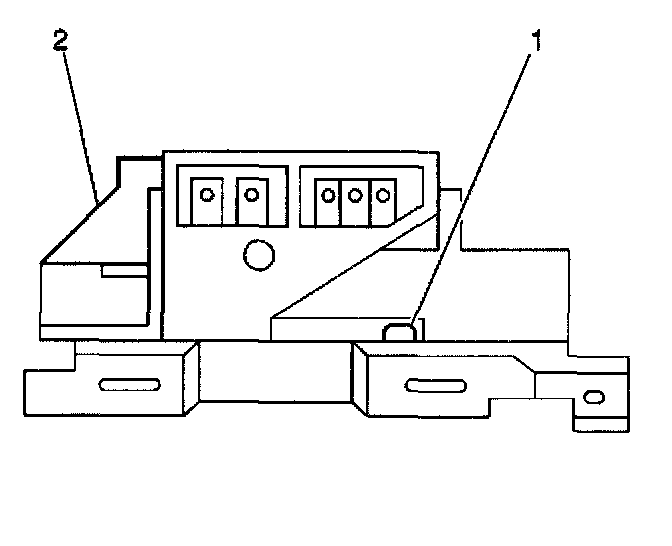

2. Complete the following steps in order to ensure that the ignition switch (2) is in the LOCK (1) position:
2.1. Move the switch slider to the extreme right position.
2.2. Move the slider one detent to the left.
3. Ensure that the following components are in the LOCK position:
- The steering column lock
- The ignition cylinder
4. Install the ignition switch (7) to the jacket (1).
5. Install the ignition switch actuator rod (3) to the ignition switch.
Notice: Refer to Fastener Notice in Service Precautions.
6. Install the Bolt/Screw (6).
- Tighten the Bolt/Screw (6) to 2.5 Nm (22 inch lbs.).
7. Position the dimmer switch (5) to the ignition switch (7).
8. Install the bolts/screws.
9. Complete the following procedures in order to adjust the dimmer switch:
9.1. Press the switch mechanism slightly in order to insert the 3/32-inch drill bit.
9.2. Move the dimmer switch in order to remove the lash.
- Tighten the bolts/screws to 4 Nm (35 inch lbs.).
10. Install the electrical connectors to the dimmer switch (5) and the ignition switch (7).
11. Install and adjust the parking brake switches.
12. Raise the column.
13. Install the steering column upper support nuts to the steering column support.
14. Install the steering column dash cover bolts.
15. Install the instrument panel driver knee bolster and deflector.
16. Enable the SIR.
