Pilot Bearing: Service and Repair

Pilot Bearing Replacement
^ Tools Required
- J 23907 Slide Hammer with Bearing Adapter

Removal Procedure





1. Remove the clutch.
2. Using the J 23907, remove the clutch pilot bearing.

Installation Procedure

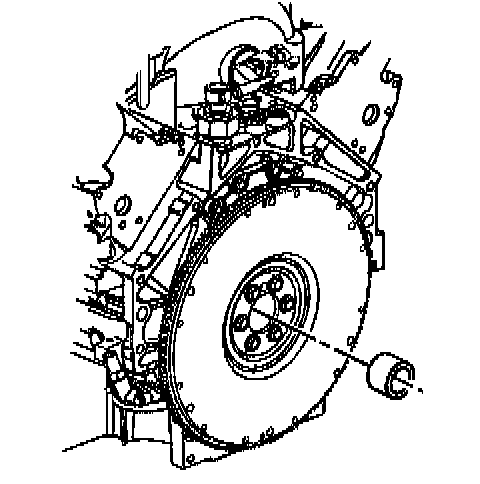

1. Using a suitable size socket, install the clutch pilot bearing.
2. Install the clutch.
