Transmission Mount: Service and Repair

Transmission Mount Replacement

Removal Procedure





1. Raise and suitably support the vehicle. Refer to Vehicle Lifting.
2. Support the transmission with a transmission jack.
3. Remove the transmission mount nut (2) and washer.





4. Remove the transmission support bolts (2).
5. Remove the transmission support (1).

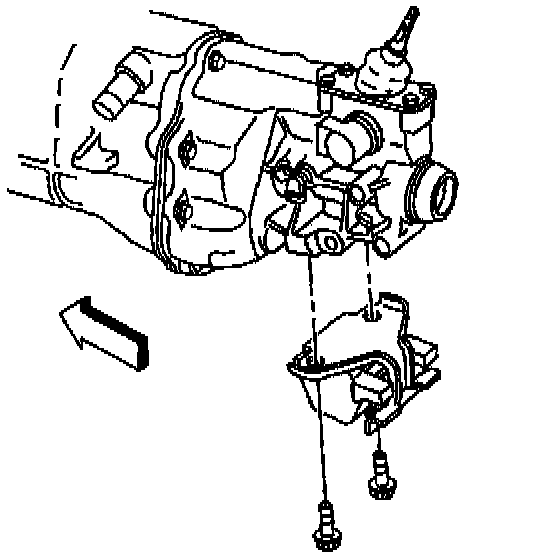

6. Remove the transmission mount bolts.
7. Remove the transmission mount.

Installation Procedure





1. Install the transmission mount.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the transmission mount bolts.
^ Tighten the transmission mount bolts to 48 Nm (36 ft. lbs.).





3. Install the transmission support (1).
4. Install the transmission support bolts (2).
^ Tighten the transmission support bolts (2) to 90 Nm (66 ft. lbs.).





5. Install the transmission mount nut (2) and washer.
^ Tighten the transmission mount nut (2) to 105 Nm (77 ft. lbs.).
6. Remove the transmission jack.
7. Lower the vehicle.
