Pressure Regulating Solenoid: Service and Repair

Pressure Control Solenoid (PCS) Replacement
Removal Procedure





1. Remove the case side cover.
2. Disconnect the pressure control solenoid electrical connector.

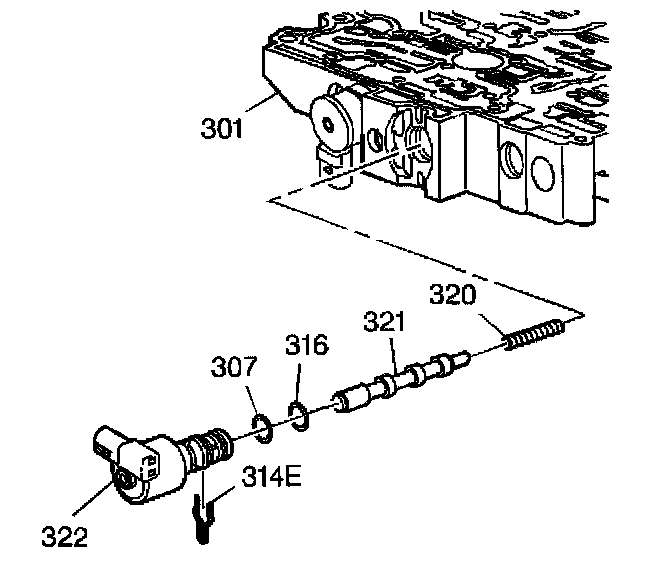

3. Remove the retaining clip (314E).
4. Remove the pressure control solenoid (322).

Installation Procedure





1. Install the pressure control solenoid (322).
2. Install the retaining clip (314E).
3. Connect the pressure control solenoid electrical connector.
4. Install the case side cover.
