Transmission Pressure Test Port: Service and Repair

Oil Pressure Test Plug Replacement
Removal Procedure





1. Remove the air cleaner intake duct.

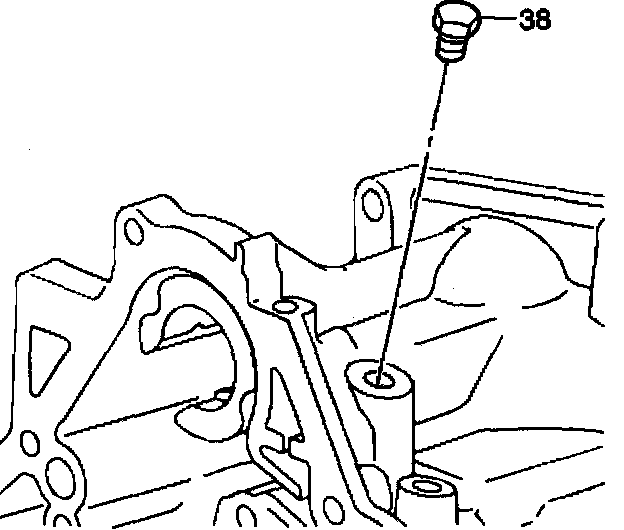

2. Remove the line pressure pipe plug (38).

Installation Procedure





1. Apply GM P/N 12345382 (Canadian P/N 10953489) or equivalent to the line pressure pipe plug.

Notice: Refer to Fastener Notice in Service Precautions.

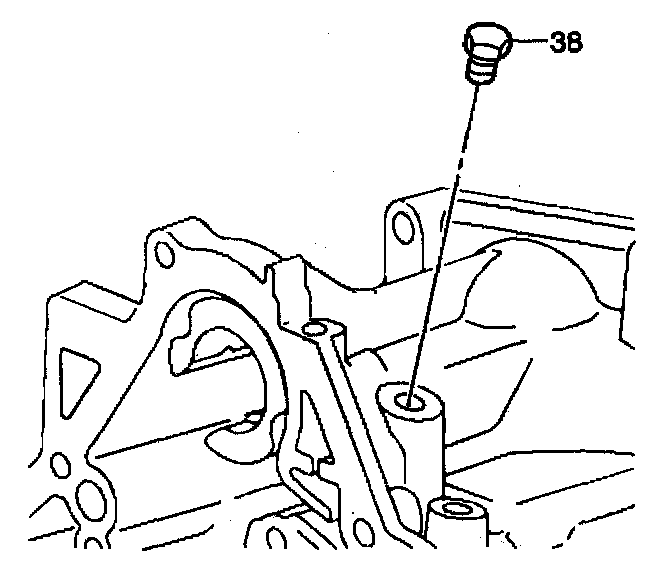

2. Install the line pressure pipe plug (38).
^ Tighten the plug (38) to 11 Nm (97 inch lbs.).
3. Install the air cleaner intake duct.
