Water Pump: Service and Repair
Water Pump ReplacementRemoval Procedure
1. Drain the cooling system.
2. Loosen water pump pulley bolts.
3. Remove drive belt.
4. Remove the water pump pulley bolts.

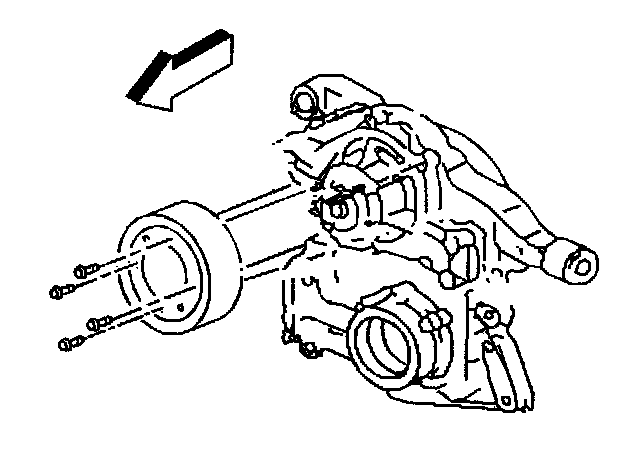

5. Remove water pump pulley.
6. Remove power steering pump and reposition.
7. Remove the water pump bolts.

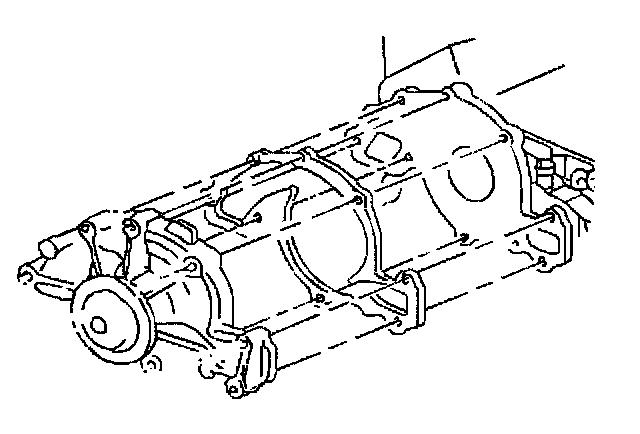

8. Remove water pump.
9. Remove the water pump gasket.
10. Clean and inspect the water pump mating surfaces.
Installation Procedure
1. Install the water pump gasket.

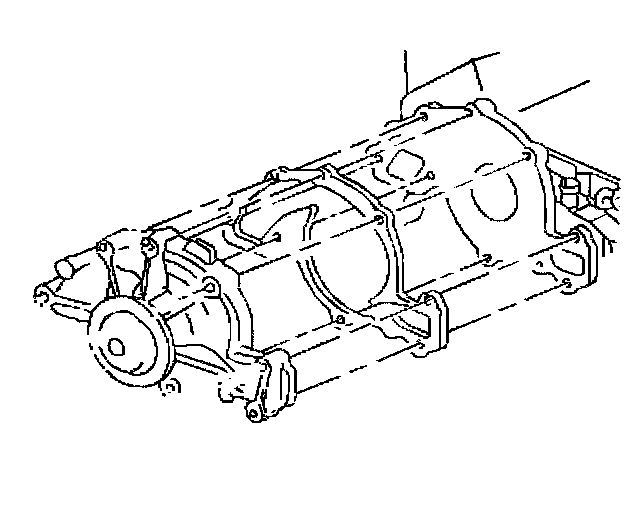

2. Install the water pump.
Notice: Refer to Fastener Notice in Service Precautions.

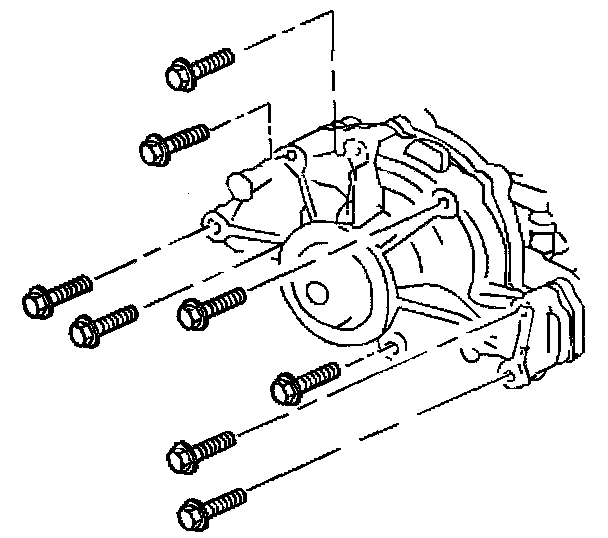

3. Install the water pump bolts.
^ Tighten the long water pump bolts to 34 Nm (25 lb ft).
^ Tighten the short water pump bolts to 22 Nm (16 lb ft).

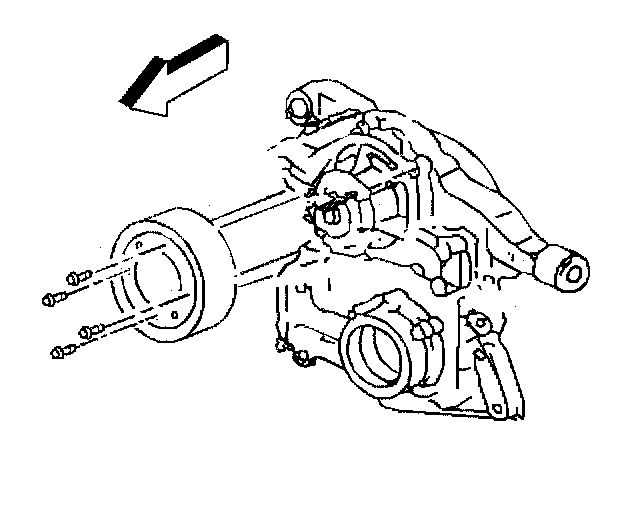

4. Install the water pump pulley.
5. Install the water pump pulley bolts.
^ Tighten the water pump pulley bolts to 13 Nm (115 lb in).
6. Install the power steering pump and the power steering bolts.
7. Install the drive belt.
8. Fill the cooling system.
9. Inspect for leaks.
