Home >> Pontiac >> 2003 >> Grand Prix V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Amplifier, Sound System >> Audio Amplifier, C1 (With RPO Code U85)

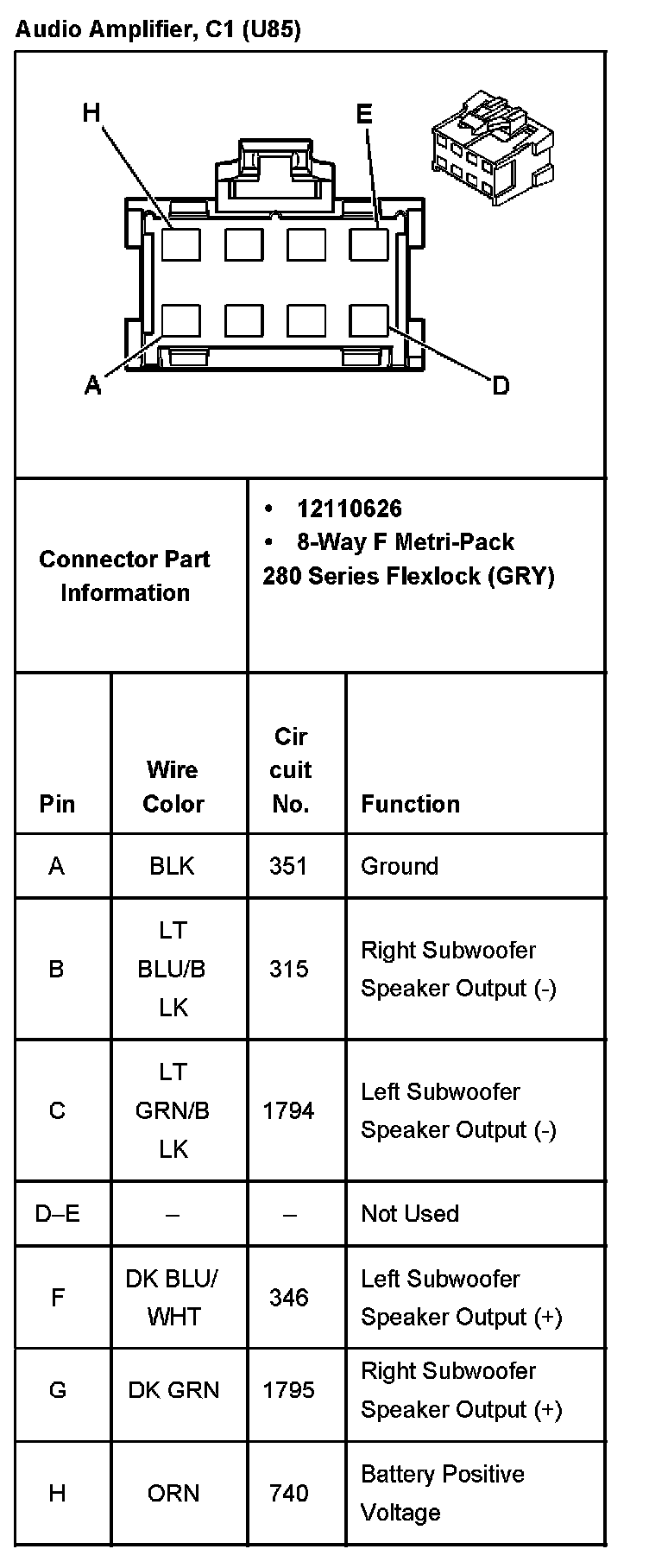

Audio Amplifier, C1 (With RPO Code U85)

Audio Amplifier, C1 (With RPO Code U85):
