Temperature Control Cable Replacement

REMOVAL PROCEDURE




1. Remove the I/P carrier.

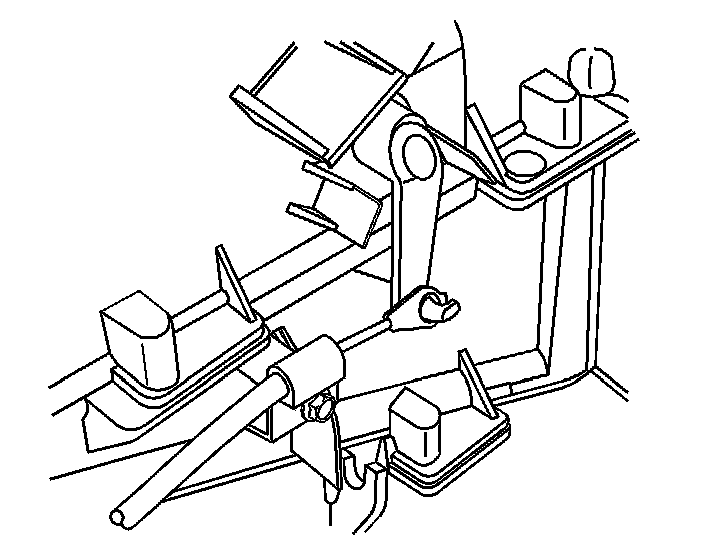

2. Disconnect the temperature control cable from the temperature door lever.
3. Remove the cable flag retaining screw.
4. Remove the HVAC control assembly.
5. Remove the temperature control cable.

INSTALLATION PROCEDURE




1. Install the temperature control cable to the HVAC control assembly.

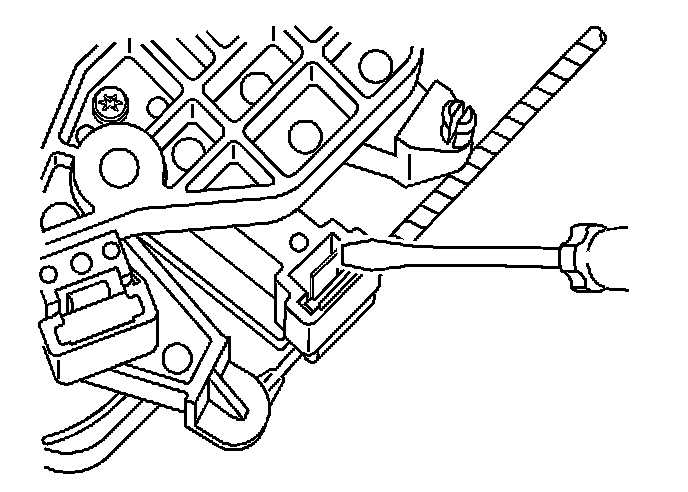

2. Snap in the flag. Snap the die cast end form over the lever post.
3. Lock the cable flag to the HVAC control assembly.
4. Install the cable cover.
5. Install the HVAC control assembly.




6. Install the cable to the temperature door lever.
7. Install the cable flag and screw to the HVAC module assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the screw to 2 N.m (18 lb in).

8. Install the I/P carrier.
