Front Fender Liner: Service and Repair

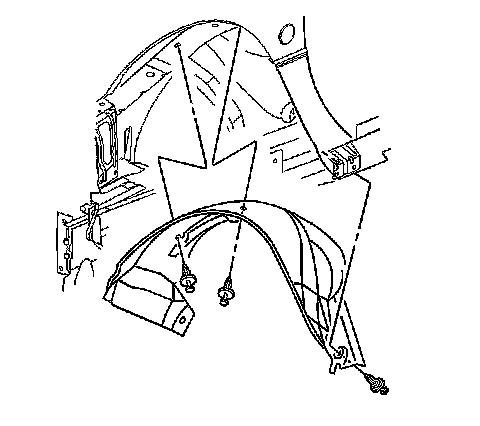

Front Wheelhouse Liner Replacement

Removal Procedure

1. Remove the front fascia extension.
2. Remove the push in retainers from the wheelhouse liner.




3. Remove the wheelhouse liner.

Installation Procedure




1. Position the wheelhouse liner to the vehicle.
2. Install the push in retainers to secure the wheelhouse liner.
3. Install the front fascia extension.
