Valve Rocker Arm Cover Replacement - Left Side

Removal Procedure





1. Disconnect the negative battery cable from the battery.
2. Remove the front suspension support brace.
3. Remove the fuel rail covers.

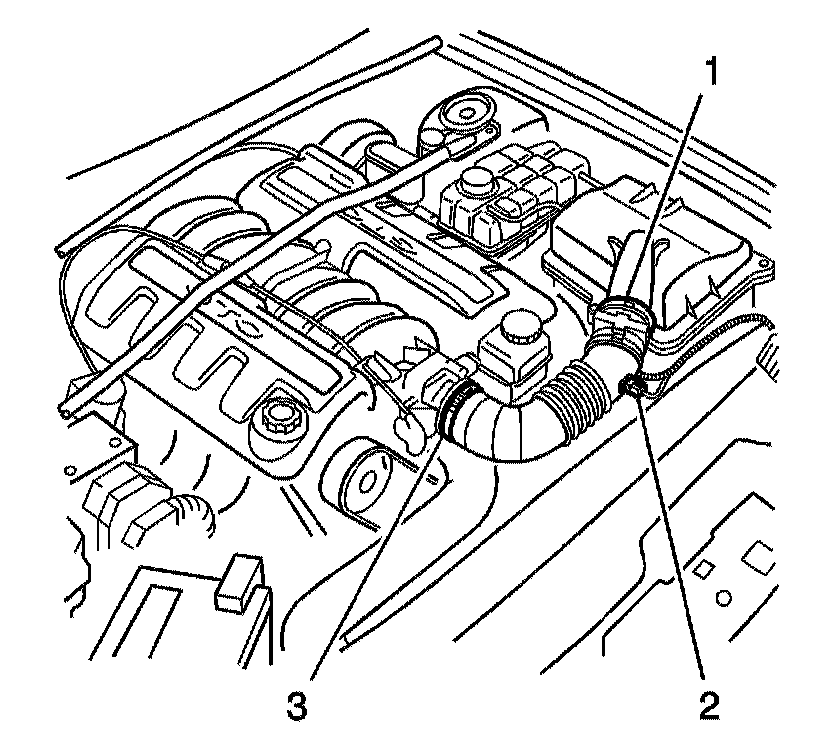

4. Disconnect the air intake sensor connector (2) from the air intake sensor.
5. Loosen the hose clamps (1,3) securing the intake duct.
6. Remove the intake duct from the vehicle.





7. Depressurize the fuel rail.

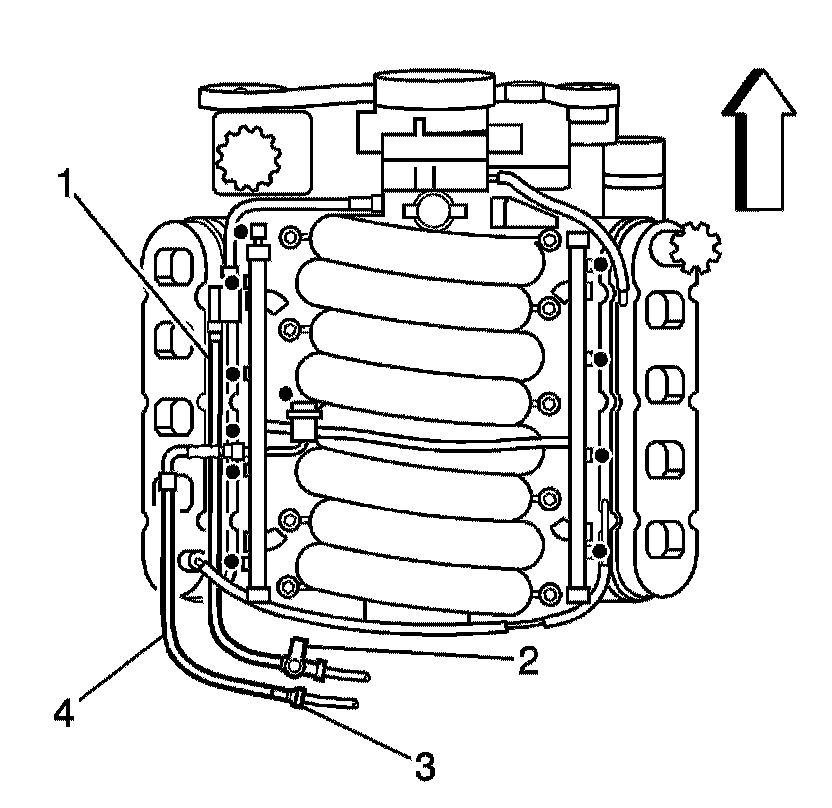

8. Disconnect the fuel line (4) from the fuel rail.
9. Disconnect the purge line (1) from the purge valve.

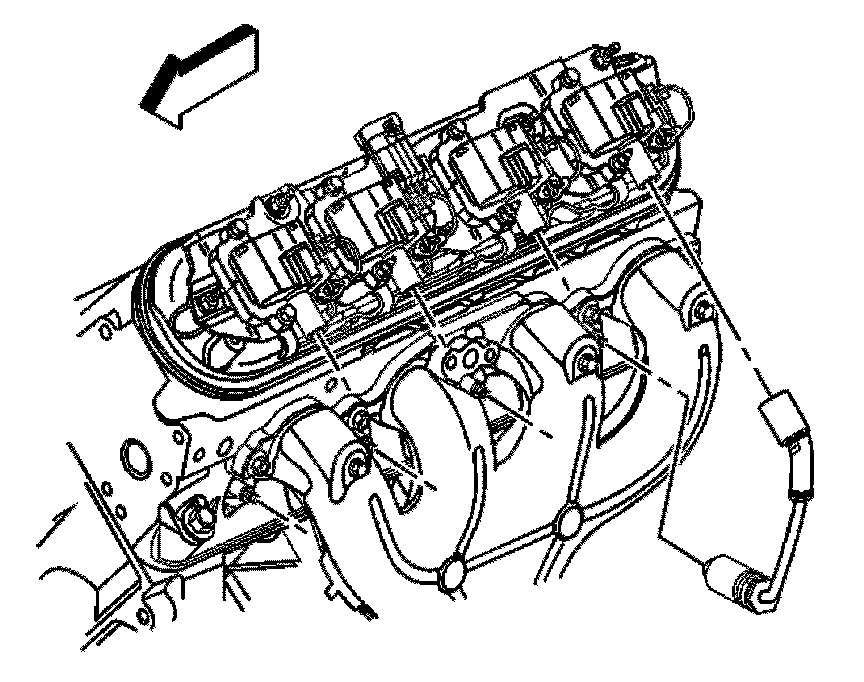

10. Disconnect the spark plug wires from the ignition coils.
^ Twist the spark plug wire boot 1/2 turn.
^ Pull only on the boot in order to remove the wire from the ignition coil.

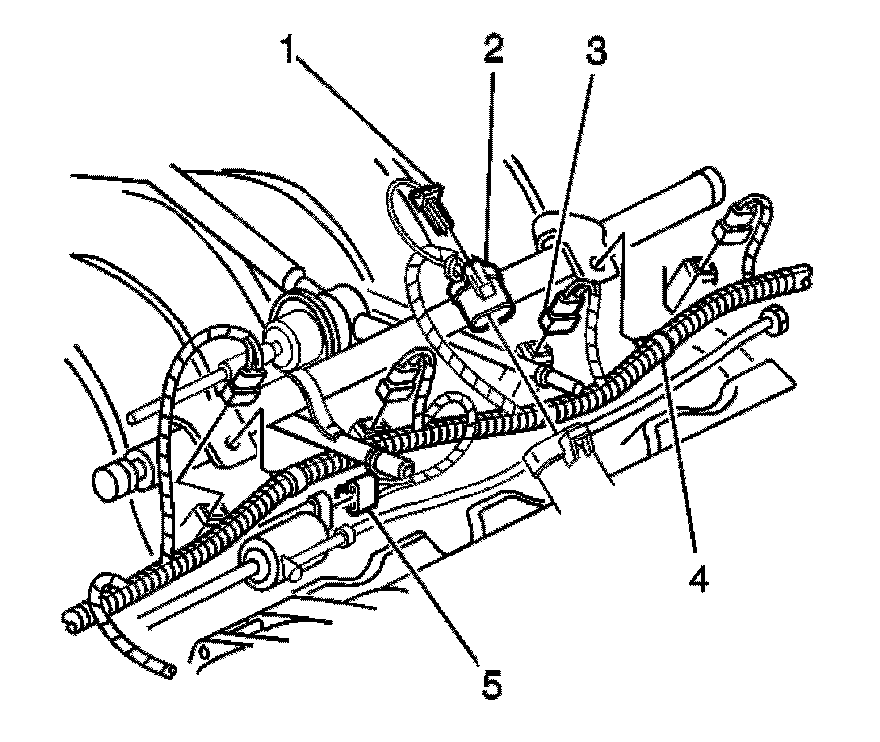

11. Remove the connector position assurance (CPA) clip (1).
12. Disconnect the ignition coil wire harness main electrical connector (2).

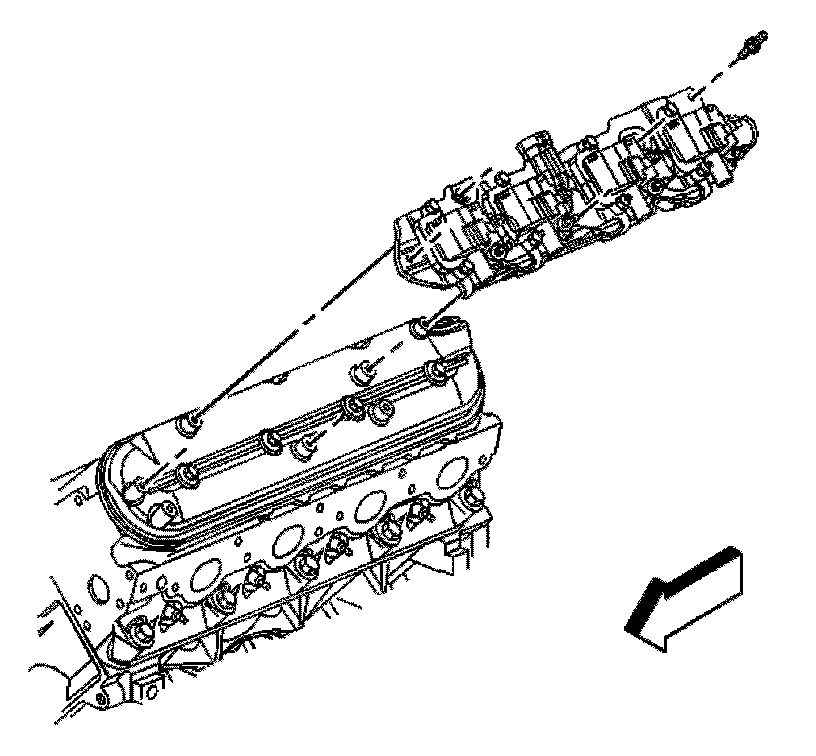

13. Remove the ignition coil bracket bolts and screw from the rocker arm cover.
14. Remove the ignition coil bracket from the rocker arm cover.

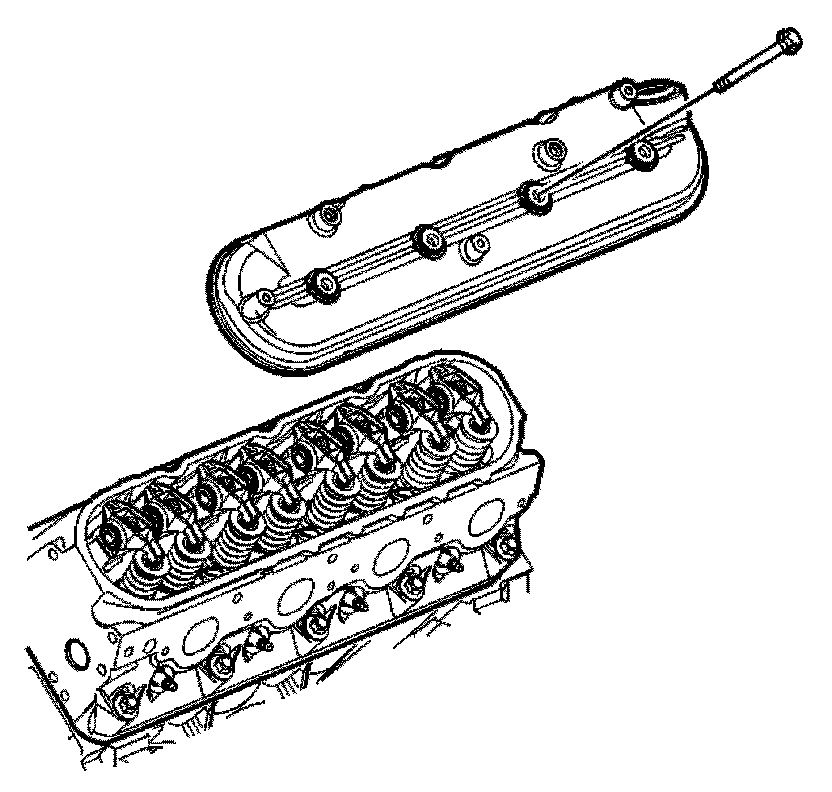

15. Remove the valve rocker arm cover bolts.
16. Remove the valve rocker arm cover.

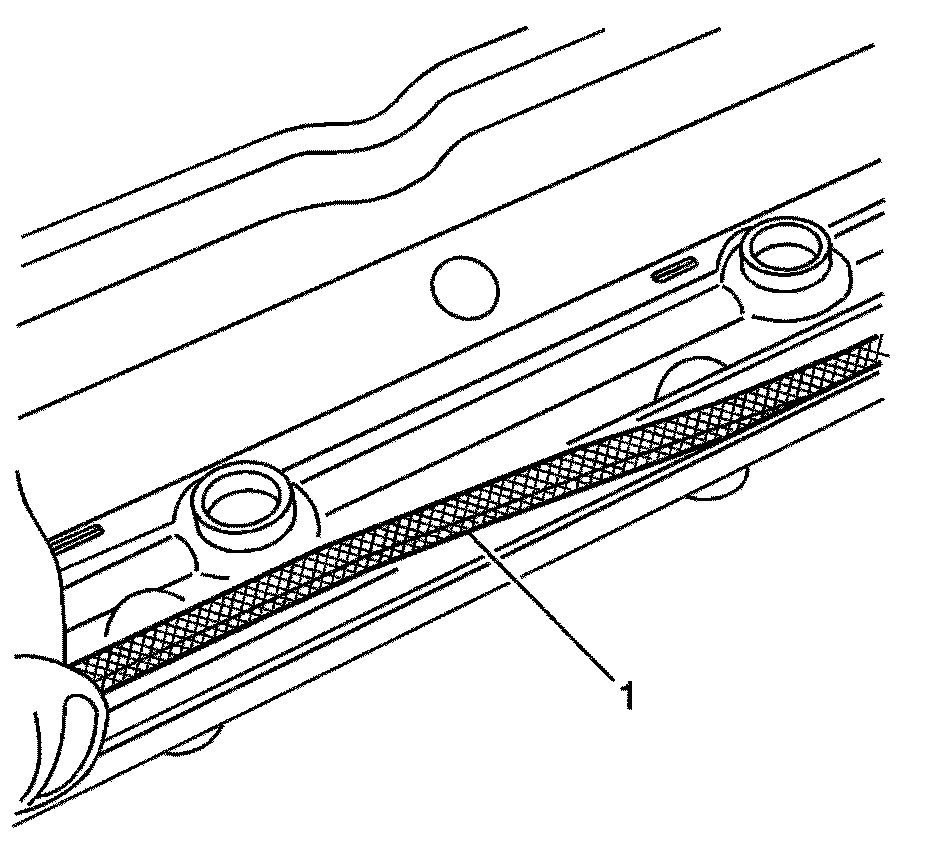

17. Remove the gasket (1) from the rocker cover.
18. Discard the OLD gasket.
19. Clean and inspect the rocker arm cover.

Installation Procedure

Important:
^ All gasket surfaces should be free of oil and other foreign material during assembly.
^ DO NOT reuse the valve rocker arm cover gasket.
^ The valve rocker arm cover bolt grommets may be reused.





1. Install a NEW rocker cover gasket (1) into the valve rocker cover lip.





2. Install the valve rocker arm cover onto the cylinder head.
3. Install NEW rocker arm cover bolt grommets, if necessary.

Notice: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

4. Install the rocker arm cover bolts.

Tighten
Tighten the valve rocker arm cover bolts to 12 Nm (106 lb in).





5. Apply threadlock GM P/N 12345382, (Canadian P/N 10953489), or equivalent to the threads of the bracket studs.
6. Install the ignition coil bracket to the rocker arm cover.
7. Install the ignition coil bracket bolts and screw to the rocker arm cover.

Tighten
Tighten the ignition coil bracket bolts to 12 Nm (106 lb in).





8. Connect the ignition coil wire harness main electrical connector (2).
9. Install the CPA clip (1).





10. Install the spark plug wires to the ignitions coils.





11. Connect the fuel line (4) to the fuel rail.
12. Connect the purge line (1) to the purge valve.





13. Install the intake duct to the vehicle.
14. Secure the intake duct with the hose clamps (1,3).
15. Connect the air intake sensor connector (2) to the air intake sensor.
16. Install the fuel rail covers.
17. Install the front suspension support brace.
18. Connect the negative battery cable to the battery.
