Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
2005
>>
Bonneville V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
Amplifier, Sound System

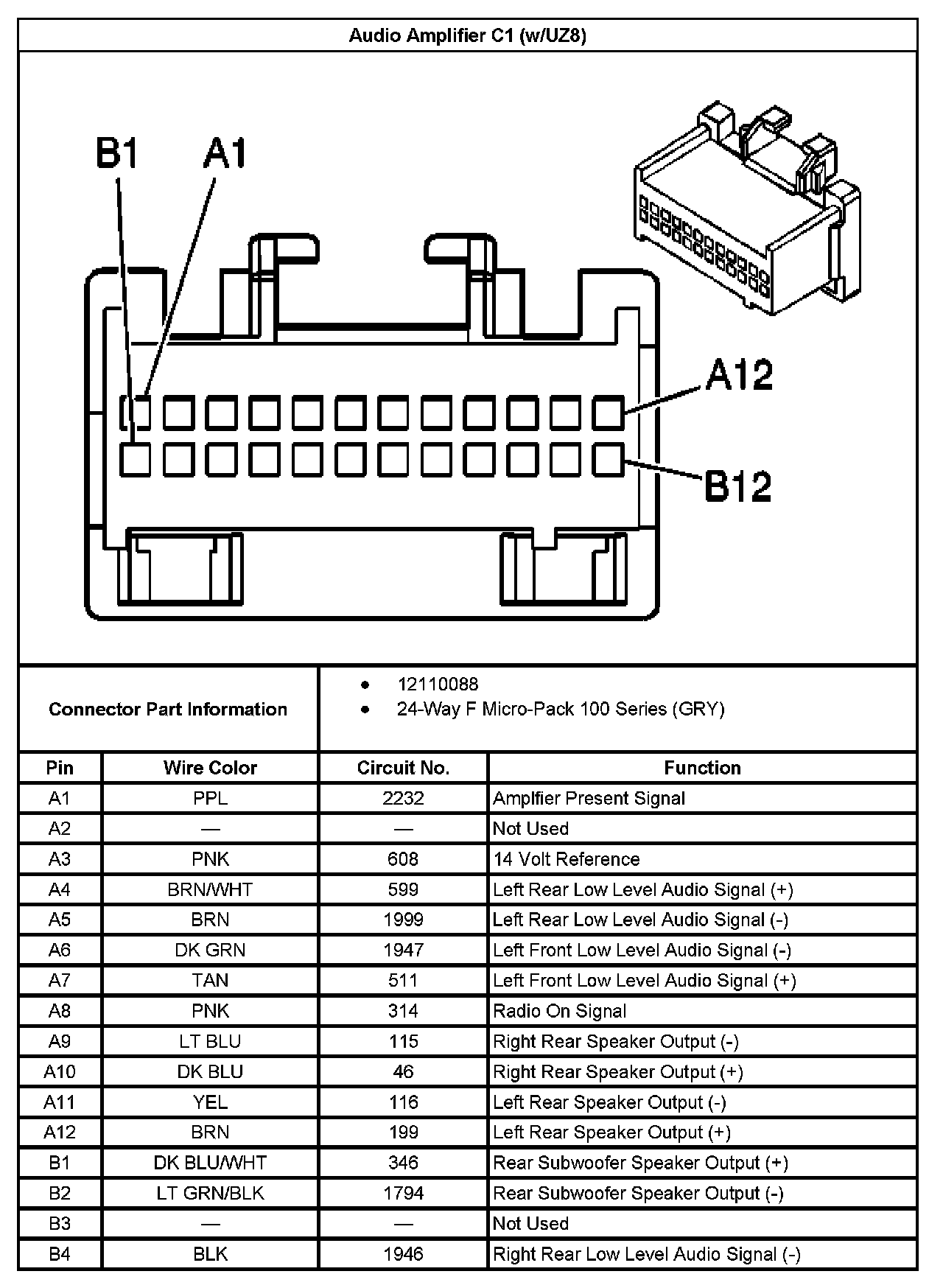

Audio Amplifier C1 (With RPO Code UZ8) Part 1:

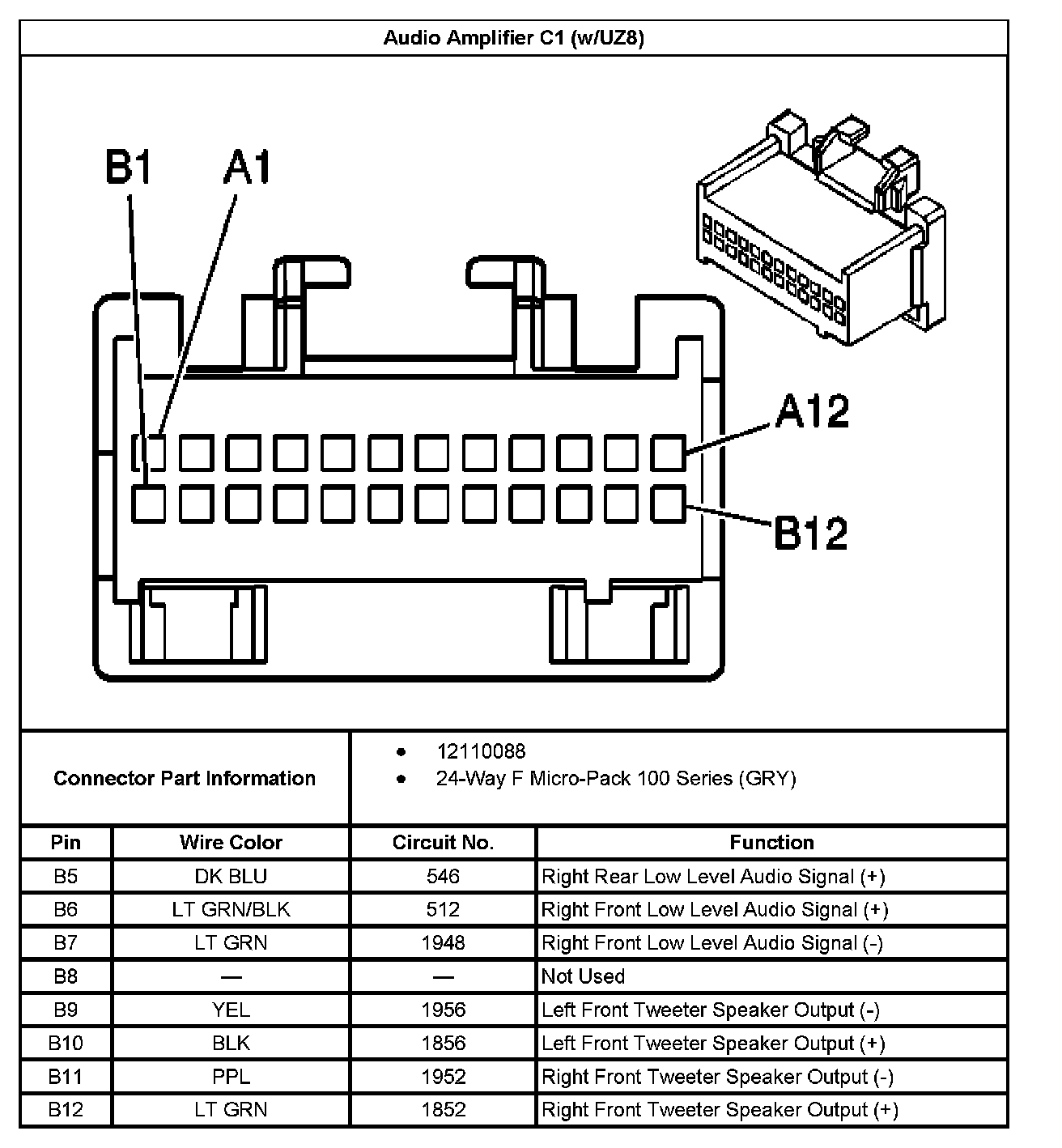

Audio Amplifier C1 (With RPO Code UZ8) Part 2:

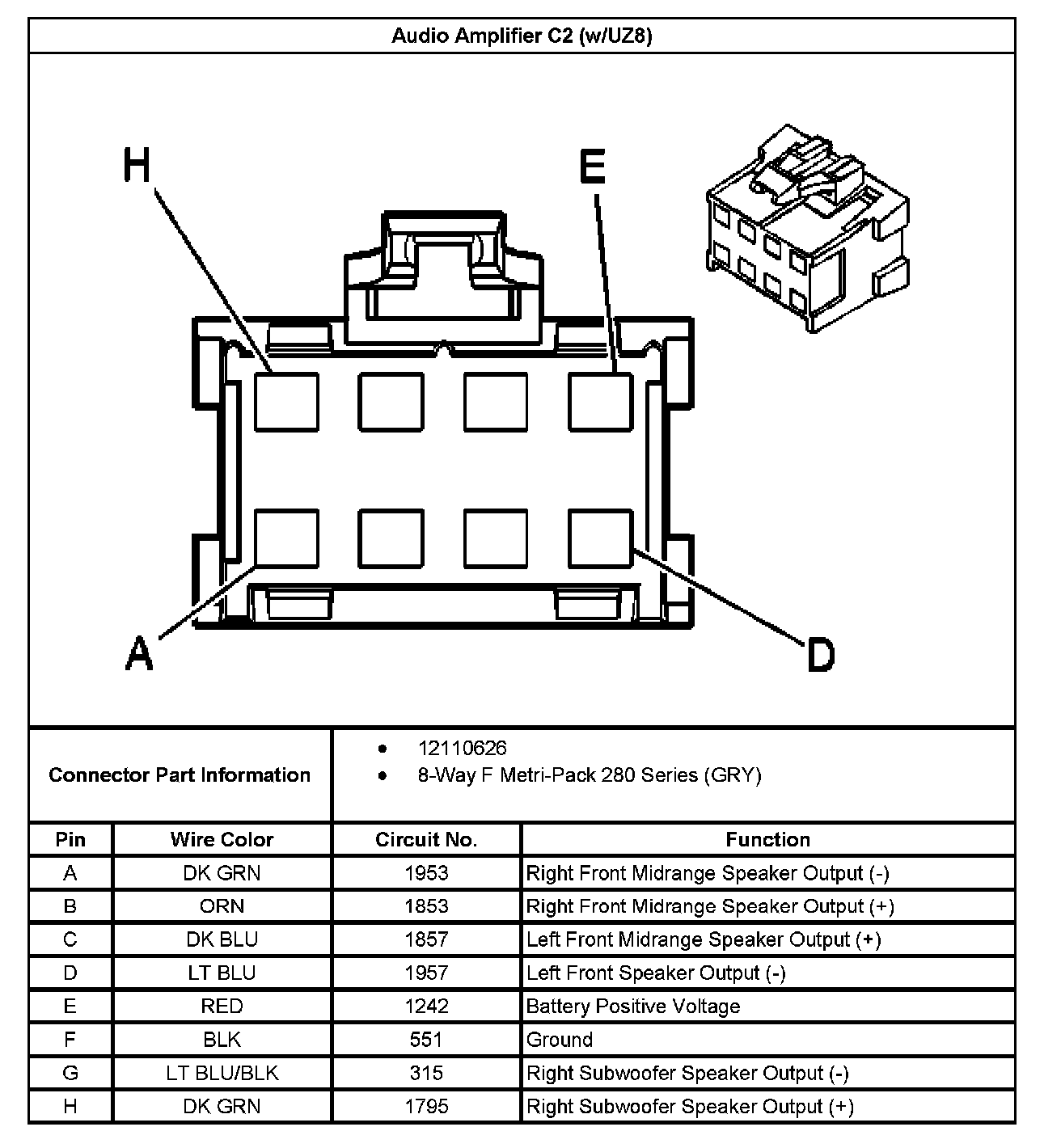

Audio Amplifier C2 ( With RPO Code UZ8):
