Windshield Washer Spray Nozzle: Service and Repair

WASHER NOZZLE REPLACEMENT - FRONT

REMOVAL PROCEDURE




1. Open the hood.

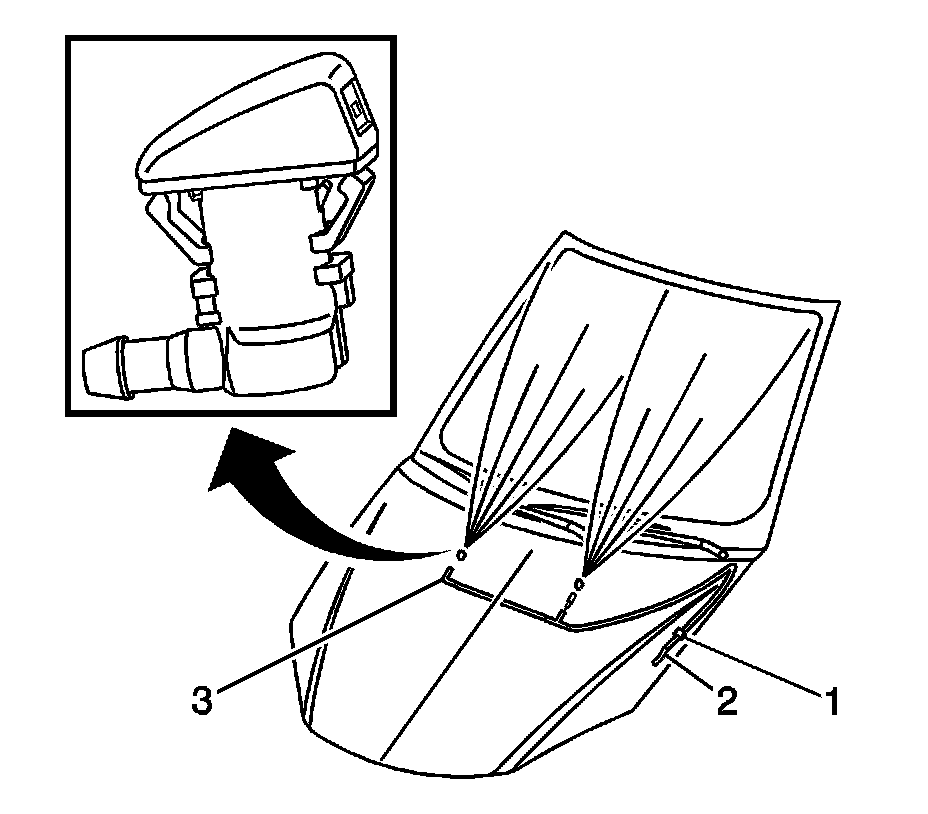

2. Using a small flat-bladed tool, push-in on the retainers located on each side of the nozzle (3) to release it from the hood.
3. Remove the nozzle from the hood.

INSTALLATION PROCEDURE




1. Install the nozzle (3) to the hood. Push downward to lock the retainers in place.
2. Install the washer hose to the washer nozzle.
3. Inspect the washers for proper operation.
4. Close the hood.
